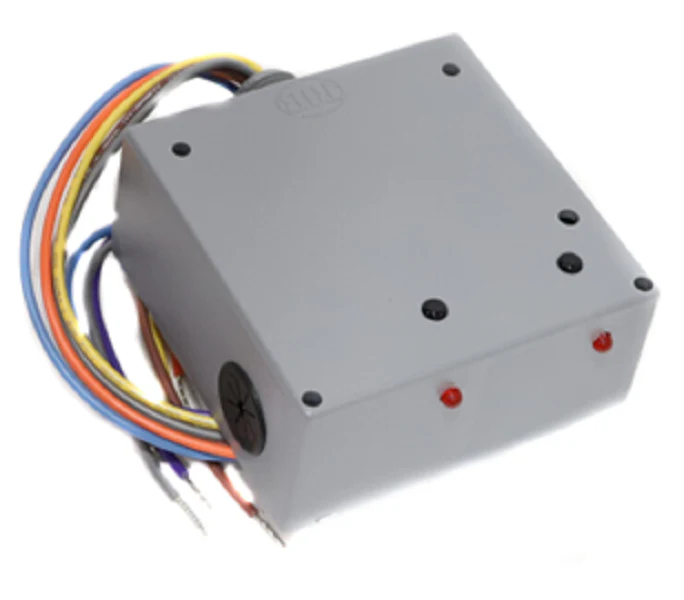

Functional Devices RIBTU2C Relay
The Functional Devices RIBTU2C is a professional-grade enclosed power relay designed for demanding HVACR control and automation tasks. This 2SPDT relay features a versatile 10-30 Vac/dc/120 Vac coil input, allowing it to interface seamlessly with various control circuits without the need for additional power transformers. Rated for a 10 Amp contact load at 120 Vac, this device is engineered for longevity and switching reliability in motorized dampeners, fan controls, and lighting circuits. Encased in a durable NEMA 1 housing, the RIBTU2C facilitates rapid installation via a standard 1/2-inch NPT nipple, ensuring high-voltage separation and code compliance. Integrated LED indicators provide immediate visual feedback of the coil status, simplifying field troubleshooting. This unit is an essential component for technicians requiring a robust, pilot duty rated switching solution that provides complete isolation between low-voltage controllers and line-voltage loads.
Key Benefits for the Contractor:
- Universal Input Compatibility: Operates on 10-30 Vac/dc or 120 Vac, reducing the number of stock units needed for diverse service calls.
- Dual Pole Design: 2SPDT configuration allows for simultaneous control of two separate circuits or complex interlocking logic.
- Pre-wired Leads: Comes equipped with color-coded leads for fast, intuitive connections, minimizing time on the job site.
- Compact Enclosure: The NEMA 1 rated housing protects internal components and permits easy mounting to junction boxes or equipment panels.
- Operational Reliability: Built for continuous duty cycles in high-demand commercial and industrial HVAC environments.
Common Technical Questions:
Can the RIBTU2C be used to switch both inductive and resistive loads?
Yes, this 10A power relay is rated for both 10 Amp resistive loads and pilot duty applications, making it suitable for motor starters and solenoid valves.
How do the LED indicators assist in the field?
The LEDs provide a clear visual confirmation when the coil is energized, allowing technicians to verify control signal integrity without pulling out a multimeter immediately.
Is this relay suitable for 24VAC control systems?
Absolutely. The 10-30VAC input range is specifically designed to handle standard 24VAC HVAC control voltages with high tolerance for voltage fluctuations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
