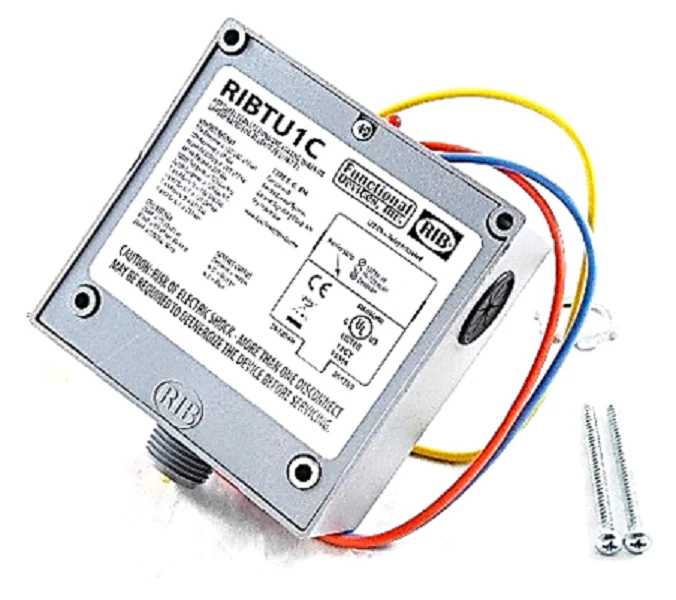

Functional Devices RIBTU1C Relay
The Functional Devices RIBTU1C is a versatile enclosed pilot relay designed for high-reliability switching in BAS (Building Automation Systems) and HVAC mechanical applications. This SPDT (Single Pole Double Throw) relay features a 10A contact rating, making it ideal for controlling fans, dampers, and small motors. The unit operates on a multi-voltage input of 10-30VAC/DC or 120VAC, providing contractors with a "one-size-fits-all" solution that reduces the need for multiple SKUs on the service truck. Housed in a NEMA 1 rated enclosure with a 1/2" NPT nipple, the RIBTU1C relay mounts directly to a junction box for clean, professional installations. External LED status indicators allow for rapid visual diagnostic checks of the relay coil's energized state. Designed for continuous duty, this dry contact relay ensures seamless integration with controllers utilizing 24V or 120V logic circuits while maintaining electrical isolation between control and load hardware.
Key Benefits for Technicians- Multi-Voltage Coil: Supports 10-30VAC/DC and 120VAC inputs for maximum field flexibility.
- 10 Amp SPDT Contacts: Rated for general-purpose switching and motor loads up to 1/3 HP at 120VAC.
- Integrated Housing: NEMA 1 enclosure with pre-wired leads eliminates the need for external mounting brackets.
- Diagnostic LED: Provides immediate feedback on relay coil activation during system commissioning.
- UL Listed: Meets rigorous safety standards for HVAC control applications and electrical safety.
Can the RIBTU1C be used to switch 277V loads?
No, the contacts on this specific model are rated for 120VAC max. For 277V loads, refer to the RIB2401B series.
Is the relay coil sensitive to polarity?
The 10-30VAC/DC input is not polarity sensitive, but standard wiring practices recommend consistent common/grounding across HVAC control circuits.
What is the maximum wire gauge for the leads?
The RIBTU1C comes pre-terminated with 16" leads consisting of 18 AWG wire, suitable for standard field connections via wire nuts.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $39.28
-65%$39.28
$13.75Functional Devices RIBTU1C Relay
