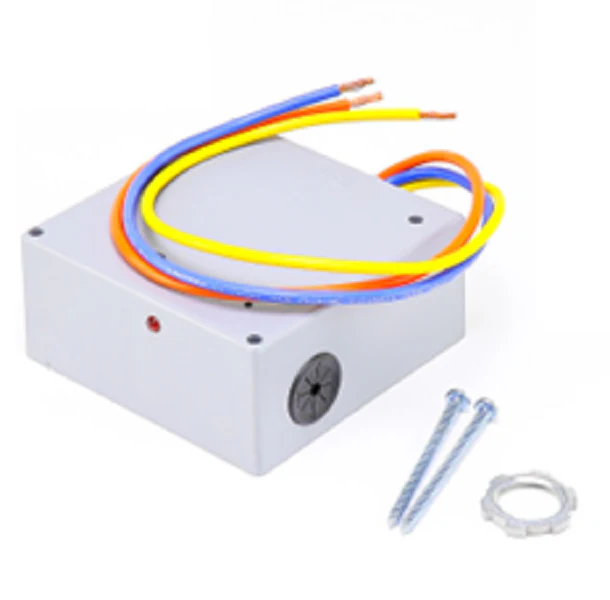

Functional Devices RIBTE24B Relay
The Functional Devices RIBTE24B is a pilot-duty SPDT enclosed relay engineered for reliable control within BAS and HVAC systems. This 20-Amp rated device features a 24Vac/dc coil, making it a versatile solution for switching inductive or resistive loads. Housed in a NEMA 1 rated enclosure with a 1/2-inch NPT nipple, the RIBTE24B allows for direct mounting to electrical boxes or HVAC cabinets, simplifying onsite wiring for contractors. The Single Pole Double Throw configuration provides flexible switching logic, while the integrated LED status indicator ensures immediate visual feedback on coil excitation during troubleshooting. Built to withstand demanding thermal environments, its solid-state circuitry and heavy-duty dry contact relay points provide long-term switching stability for fans, pumps, and lighting circuits. For technicians managing building automation sequences, this relay provides a clean, pre-packaged interface that eliminates the need for external secondary enclosures.
Key Technical Benefits
- 20-Amp resistive load rating allows for high-capacity switching in standard 120V or 277V circuits.
- Internal 24V coil compatible with standard HVAC transformers and digital controllers.
- Pre-wired color-coded leads reduce installation errors and labor time in the field.
- Small footprint enclosure fits into tight spaces within air handlers and furnace vestibules.
- Continuous duty cycle engineering ensures reliability in mission-critical environmental control applications.
Common Installation Questions
What is the maximum torque for the mounting nipple?
The 1/2-inch NPT nipple should be hand-tightened into the knockout, then secured with a locknut to ensure a vibration-resistant bond without cracking the plastic housing.
Can the RIBTE24B handle 277Vac lighting loads?
Yes, the contacts are rated for up to 277Vac, making this unit suitable for common commercial lighting and ballast control applications matching the 20A specification.
Is the LED indicator visible through the housing?
The high-intensity LED is designed to be visible through the translucent portion of the enclosure, allowing for rapid status checks without opening the junction box.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
