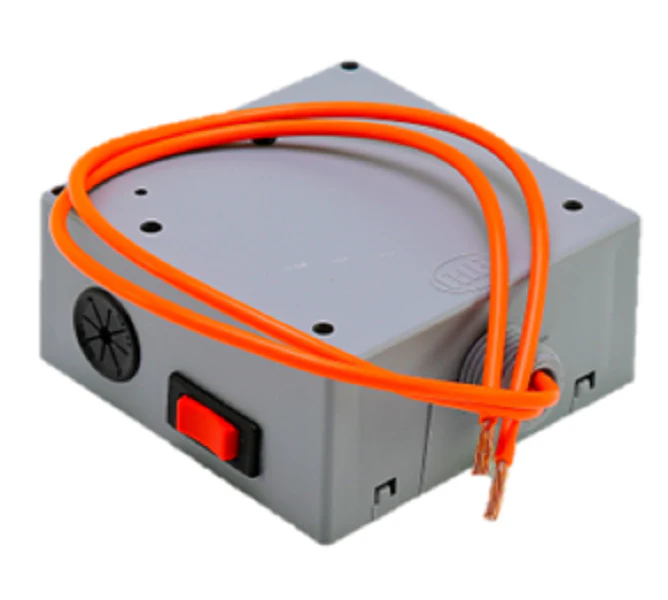

Functional Devices RIBT24SB Relay
The Functional Devices RIBT24SB is a heavy-duty 24VAC/DC relay engineered for high-demand HVAC and building automation systems. As an enclosed, pre-wired 20 amp relay, it simplifies field installation by eliminating the need for separate housings, sockets, or mounting rails. This model is specifically designed for pilot duty, resistive, and motor loads in industrial environments. Featuring a manual override switch, technicians can manually toggle the load status for testing or emergency bypass without needing to access the control signal, ensuring system reliability during maintenance.
Built for durability, the RIBT24SB is housed in a NEMA 1 plenum-rated enclosure with high/low voltage separation, meeting the stringent requirements of UL916 Energy Management and UL864 Fire standards. The unit includes a clearly visible LED status indicator to confirm relay activation and comes with 16-inch 600V pre-stripped leads for rapid integration into existing conduit via a 1/2-inch NPT nipple. Whether managing large lighting ballasts or controlling secondary HVAC equipment, this SPST continuous duty relay provides a robust switching solution with an expected mechanical life of 10 million cycles.
Key Benefits:
- Versatile Coil Input: Compatible with both 24VAC and 24VDC control circuits, reducing inventory requirements for different power sources.
- Integrated Manual Override: Allows for immediate manual control (On-Auto-Off) of the connected load, crucial for commissioning and troubleshooting.
- High Amperage Rating: Reliable 20A resistive and 20A ballast switching capacity enables direct control of heavy electrical loads.
- Plenum Rated Safety: The compact gray plastic housing is UL-accepted for use in plenum spaces, ensuring compliance with local building codes.
- Simplified Installation: The "Relay in a Box" design saves labor time with 1/2" NPT nipple mounting and color-coded wiring.
Common Questions:
- Can I use this relay for motor control? Yes, the RIBT24SB is rated for up to 1 HP at 120VAC or 2 HP at 277VAC, making it suitable for small fan motors and pumps.
- Does the override switch affect the control signal? No, the override switch is on the load side. In "Auto" mode, it follows the coil signal; in "On," it bypasses the coil to close the contacts.
- Is this relay suitable for electronic ballasts? While rated for 20A standard ballasts, it is not specifically rated for high-inrush electronic ballasts; please verify your specific ballast's peak amperage.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
