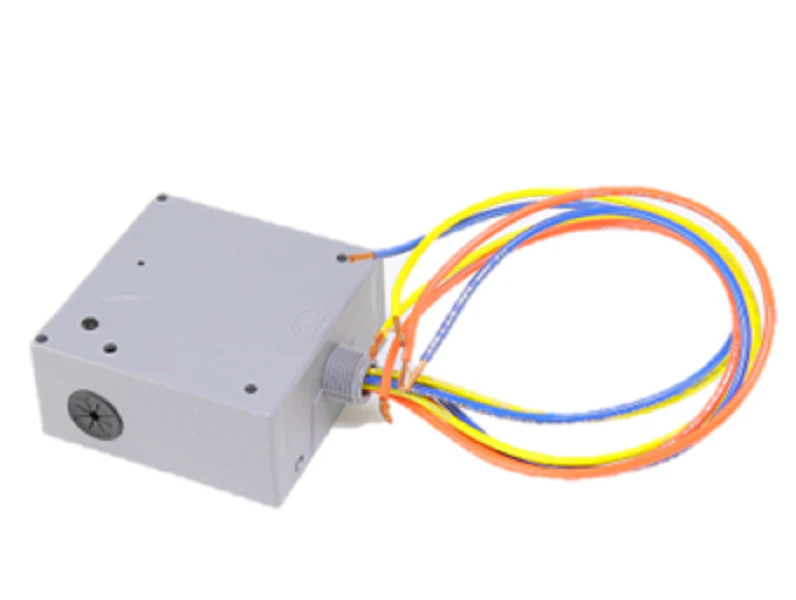

Functional Devices RIBT243P Relay
The Functional Devices RIBT243P is a heavy-duty, enclosed power relay designed for demanding BAS, HVAC, and motor control applications. This 20 Amp 3PST relay features three poles with normally open (N/O) contacts, making it ideal for simultaneous switching of three-phase loads or multiple independent circuits. Designed with high/low voltage separation, the internal 24Vac/dc coil is safely isolated from the high-voltage power contacts, ensuring reliable performance in complex control environments. The unit is housed in a NEMA 1 enclosure, which is plenum rated for installation in air-handling spaces, and includes a 0.5" NPT nipple for simplified mounting. With a mechanical life rating of 10 million cycles and an integrated LED for relay status indication, this "Relay in a Box" (RIB) eliminates the need for separate sockets and enclosures. It is a go-to low voltage control relay for contractors requiring a pre-wired, durable solution for 3-pole switching in commercial and industrial settings.
Key Benefits
- Reduced Installation Time: Pre-wired and mounted in a compact enclosure, saving the labor of assembling separate components.
- Versatile Compatibility: The 3PST-N/O configuration handles heavy loads, including up to 7.5 HP at 480 Vac (3-phase) and 20A resistive loads.
- High/Low Voltage Isolation: Physical separation between control and power wiring enhances safety and meets strict code requirements.
- Universal Coil Input: Accepts both 24V AC/DC, allowing for flexible integration with various building automation controllers.
- Environmentally Robust: Rated for operation from -30°F to 140°F, ensuring reliability in unconditioned mechanical spaces.
Common Questions
Can the RIBT243P be used for 3-phase motor control?
Yes, this enclosed relay is specifically rated for 3-phase motor applications, managing up to 5 HP at 240 Vac and 7.5 HP at 480 Vac.
Is the enclosure suitable for use in air plenums?
Absolutely. The housing is UL accepted for use in plenum spaces and carries a NEMA 1 rating, providing the necessary protection for standard indoor environments.
How do I verify the relay is functioning?
The unit includes an integrated LED that illuminates when the 24V coil is energized, permitting quick visual confirmation of the relay's status without using a multimeter.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
