Functional Devices RIBT242B Relay

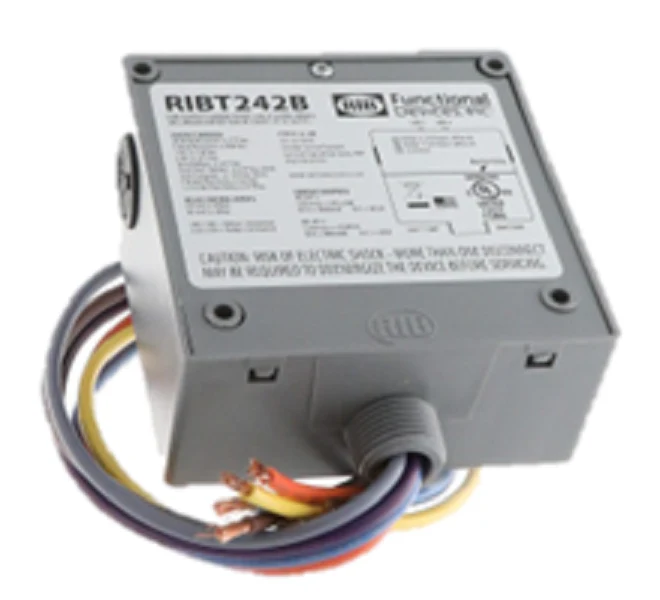

The Functional Devices RIBT242B Relay is a heavy-duty, 24VAC/DC enclosed power relay engineered for demanding HVACR and industrial automation environments. Featuring a 20 Amp 2SPDT (Double Pole Double Throw) contact configuration, this "Relay in a Box" provides reliable control for high-voltage motor loads, lighting circuits, and fan systems. The unit is housed in a NEMA 1 plenum-rated enclosure, ensuring high/low voltage separation to simplify field wiring and meet strict building codes. Designed for bas and building automation integration, the RIBT242B includes a visible LED status indicator to streamline troubleshooting. With a mechanical life rating of 10 million cycles and 600V rated pre-wired leads, this technical-grade component minimizes labor costs by eliminating the need for separate sockets or mounting rails. Whether you are managing inductive loads or complex interlocking circuits, the Functional Devices RIBT242B delivers the robust performance required by professional contractors.
- Dual SPDT Contacts: Provides 20 Amp resistive switching for two independent circuits, ideal for complex HVAC control logic.
- Versatile Coil Input: Operates on both 24VAC and 24VDC, ensuring compatibility with standard DDC controllers and 24V transformers.
- Integrated Enclosure: The pre-mounted NEMA 1 housing with a 1/2" NPT nipple allows for direct mounting to electrical boxes or ductwork.
- Code Compliance: UL listed and plenum rated, meeting essential safety standards for commercial and industrial installations.
Common Questions
How do I wire the RIBT242B for high/low voltage separation?
The RIBT242B is designed with a physical barrier within the housing. The 24VAC/DC coil wires are isolated from the high-voltage 20 Amp contacts, which exit through the threaded nipple, maintaining professional safety standards during field installation.
Can this relay control 2 HP motor loads?
Yes, the Functional Devices RIBT242B is rated for 2 HP at 277VAC and 1 HP at 120VAC, making it suitable for direct control of small to medium motor loads in ventilation systems.
What does the LED indicator signify?
The internal LED illuminates when the 24V coil is energized and the relay has successfully switched positions. This allows a service technician to verify relay state at a glance without a multimeter.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Functional Devices RIBT242B Relay
The Functional Devices RIBT242B Relay is a heavy-duty, 24VAC/DC enclosed power relay engineered for demanding HVACR and industrial automation environments. Featuring a 20 Amp 2SPDT (Double Pole Double Throw) contact configuration, this "Relay in a Box" provides reliable control for high-voltage motor loads, lighting circuits, and fan systems. The unit is housed in a NEMA 1 plenum-rated enclosure, ensuring high/low voltage separation to simplify field wiring and meet strict building codes. Designed for bas and building automation integration, the RIBT242B includes a visible LED status indicator to streamline troubleshooting. With a mechanical life rating of 10 million cycles and 600V rated pre-wired leads, this technical-grade component minimizes labor costs by eliminating the need for separate sockets or mounting rails. Whether you are managing inductive loads or complex interlocking circuits, the Functional Devices RIBT242B delivers the robust performance required by professional contractors.
- Dual SPDT Contacts: Provides 20 Amp resistive switching for two independent circuits, ideal for complex HVAC control logic.
- Versatile Coil Input: Operates on both 24VAC and 24VDC, ensuring compatibility with standard DDC controllers and 24V transformers.
- Integrated Enclosure: The pre-mounted NEMA 1 housing with a 1/2" NPT nipple allows for direct mounting to electrical boxes or ductwork.
- Code Compliance: UL listed and plenum rated, meeting essential safety standards for commercial and industrial installations.
Common Questions
How do I wire the RIBT242B for high/low voltage separation?
The RIBT242B is designed with a physical barrier within the housing. The 24VAC/DC coil wires are isolated from the high-voltage 20 Amp contacts, which exit through the threaded nipple, maintaining professional safety standards during field installation.
Can this relay control 2 HP motor loads?
Yes, the Functional Devices RIBT242B is rated for 2 HP at 277VAC and 1 HP at 120VAC, making it suitable for direct control of small to medium motor loads in ventilation systems.
What does the LED indicator signify?
The internal LED illuminates when the 24V coil is energized and the relay has successfully switched positions. This allows a service technician to verify relay state at a glance without a multimeter.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
