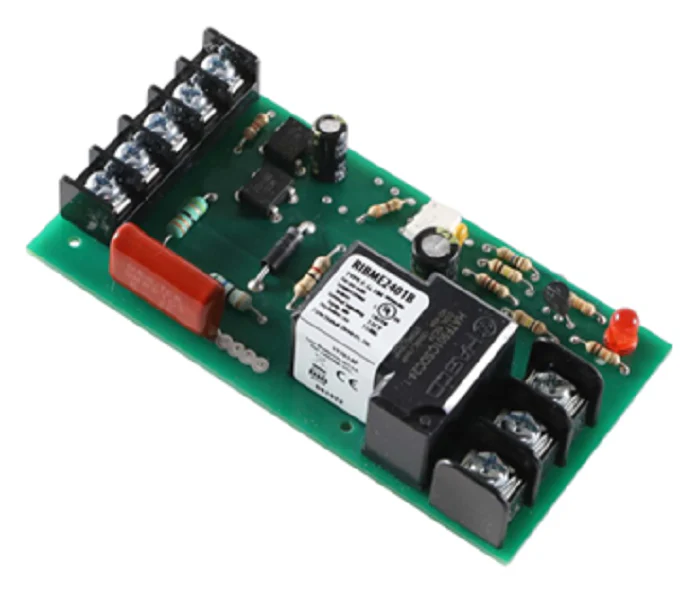

Functional Devices RIBME2401B Relay
The Functional Devices RIBME2401B is a heavy-duty 20 Amp SPDT enclosed relay engineered for versatile power control in HVAC and automation systems. This pilot relay features an external relay design housed in a NEMA 1 rated enclosure, making it an ideal solution for switching inductive loads such as motors, ballasts, and heating elements. The RIBME2401B relay is designed with dual-voltage coils, accepting 24Vac/dc or 120Vac control signals, which simplifies inventory for contractors working on mixed-voltage job sites. Its Single Pole Double Throw configuration allows for flexible normally open or normally closed wiring logic. Built for longevity in rigorous industrial environments, the unit includes an integrated LED indicator for immediate visual verification of the relay coil status, accelerating diagnostic workflows and reducing downtime on service calls.
Key Technical Benefits- High-Capacity Switching: Rated for 20 Amp resistive loads at 277Vac, providing robust performance for demanding electrical circuits.
- Multi-Voltage Control: The versatile input coil supports 24V and 120V applications, eliminating the need for multiple SKUs.
- Pre-Wired Enclosure: Comes in a UL-listed housing with color-coded leads, significantly reducing installation time in the field.
- Built-in Status LED: Provides real-time feedback on the unit’s power state for simplified troubleshooting.
- NEMA 1 Rating: Protects internal components from dust and accidental contact in indoor mechanical rooms.
Can the RIBME2401B be used for motor loads?
Yes, this relay is rated for 1 HP at 120Vac and 2 HP at 277Vac, making it suitable for managing standard blower motors and pump applications.
Does this relay support both AC and DC control voltages?
The 24V input terminal is rated for both 24Vac and 24Vdc, while the 120V terminal is dedicated to 120Vac control logic.
What is the primary advantage of the enclosed design?
The enclosed RIB relay prevents exposure to live contacts and protects the internal switching mechanism from environmental debris, ensuring a higher MTBF compared to open-frame relays.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
