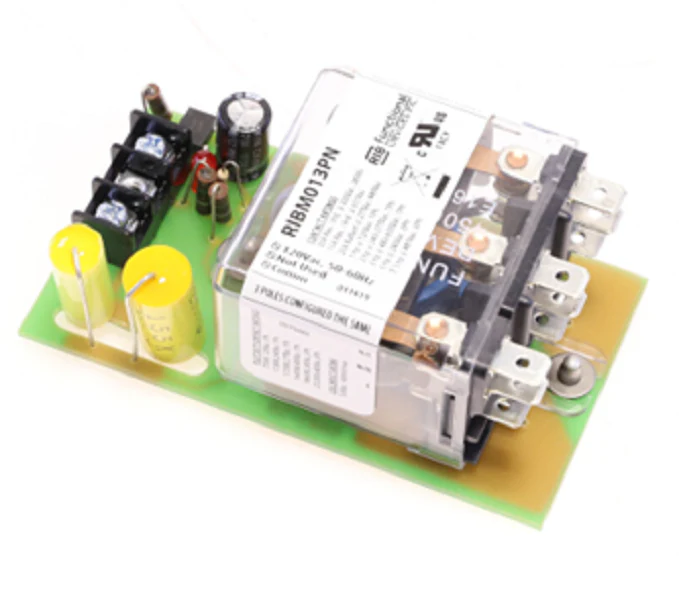

Functional Devices RIBM013PN Relay
The Functional Devices RIBM013PN is a heavy-duty 3PDT track mount relay engineered for high-current switching in demanding HVACR and industrial automation environments. This enclosed power relay features a 120 Vac coil and is rated for 30 Amp resistive loads, making it a reliable solution for controlling multi-phase motors, large electric heaters, or high-density lighting circuits. The triple pole double throw configuration allows for complex circuit logic and simultaneous switching of three independent lines. Designed for rapid deployment, it fits standard MT212 series mounting track, significantly reducing installation time in control cabinets. The gold flash contacts ensure signal integrity even in low-voltage applications, while the NEMA 1 enclosure protects the internal mechanical components from dust and debris. Technicians specify the RIBM013PN relay when they require a durable, 120V power relay that can handle inductive loads without premature contact pitting or mechanical failure.
Key Benefits- 30 Amp Power Rating: Robust 3PDT contacts handle heavy resistive and inductive loads across three poles.
- Snap Track Mounting: Compatible with 2.75-inch mounting tracks for clean, organized panel layouts.
- Visual Status Indication: Features an integrated LED indicator to provide instant verification of coil energization.
- Compact NEMA 1 Enclosure: Protects internal mechanical relay components while maintaining a small footprint.
- Pre-wired Design: Simplifies field wiring and decreases the margin for error during high-pressure system retrofits.
What is the maximum current rating for the RIBM013PN?
This Functional Devices relay is rated for a maximum of 30 Amps for resistive loads and is also rated for motor loads up to 2 HP at 250 Vac of 1 HP at 125 Vac.
Can this relay be used for multi-phase motor control?
Yes, the three-pole configuration allows this unit to switch all three legs of a 3-phase system or manage multiple independent 120V circuits simultaneously.
Does this unit require a separate enclosure?
The RIBM013PN comes in a NEMA 1 rated housing intended for installation inside a larger control panel or protected electrical cabinet using snap track.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
