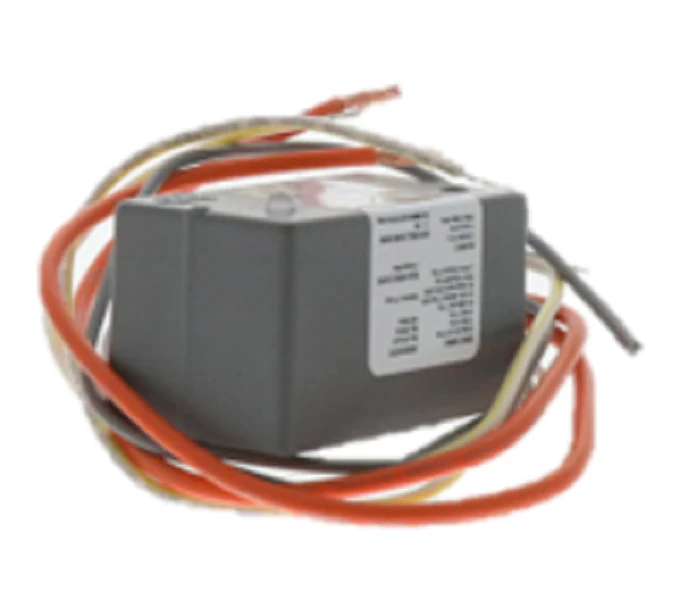

Functional Devices RIBHX24BA Enclosed Relay
The Functional Devices RIBHX24BA is a heavy-duty 20 Amp enclosed relay designed for high-current switching in demanding HVACR and building automation environments. This SPDT pilot relay features a 24 VAC/DC coil, making it compatible with standard low-voltage control systems. Housed in a durable NEMA 1 enclosure, the RIBHX24BA is engineered for surface mounting or direct attachment to a electrical junction box. The pre-wired leads and external LED indicator streamline installation and provide immediate visual status of the relay coil's activation. With a 20 Amp contact rating, this unit is capable of handling inductive, resistive, and motor loads up to 1 HP at 120V, ensuring reliable performance in motor control, lighting circuits, and load shedding applications. Professionals rely on this RIB relay for its robust design and ability to handle high-inrush currents without premature contact failure in the field.
Key Benefits for Technicians- High Current Capacity: Rated for up to 20 Amps, allowing for direct control of heavy equipment without an intermediate contactor.
- Versatile Coil Input: Operates on 24 VAC or 24 VDC, providing flexibility for various controller outputs.
- Pre-Wired Design: Reduces field labor time with clearly labeled color-coded leads.
- Internal Status LED: Simplifies troubleshooting by showing if the 24V control signal is reaching the coil.
- UL Listed: Meets rigorous safety standards for HVAC control applications and electrical safety.
What is the maximum horsepower rating for the RIBHX24BA?
This relay is rated for 1 HP at 120 VAC and 2 HP at 277 VAC, making it suitable for exhaust fans and small pump motors.
Can this relay be used for both heating and cooling applications?
Yes, the SPDT (Single Pole Double Throw) configuration allows for both Normally Open (NO) and Normally Closed (NC) operation, accommodating diverse mechanical sequences.
Where is the best place to mount the RIBHX24BA?
The relay is designed for NEMA 1 indoor use and is typically mounted directly to a 1/2" knockout on a standard 4x4 junction box or control panel.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
