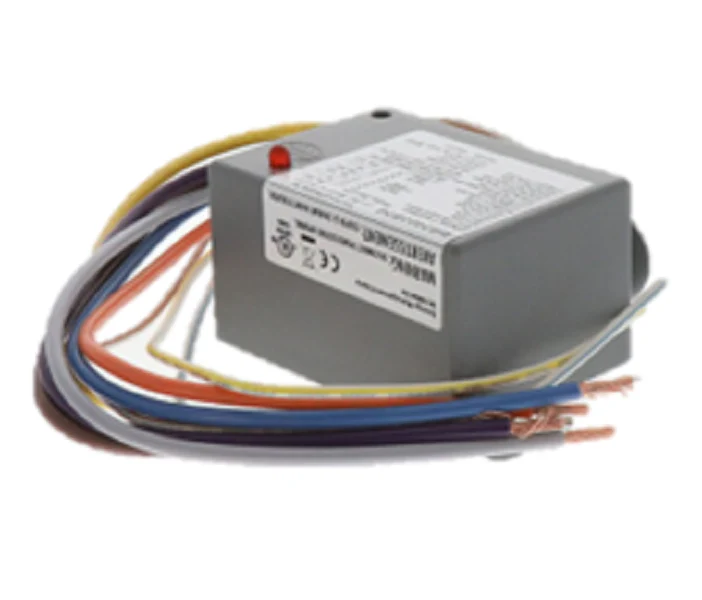

Functional Devices RIB2402B2G Enclosed Relay
The Functional Devices RIB2402B2G is a high-performance enclosed relay engineered for demanding HVACR and building automation applications. Designed for maximum versatility, this 20-amp power relay features a DPDT (Double Pole Double Throw) contact configuration, allowing for the simultaneous switching of two independent circuits. Its multi-voltage input—supporting 24 Vac/dc or 208-277 Vac—makes it a staple for technicians managing diverse site requirements with a single SKU. Housed in a durable NEMA 1 enclosure, the RIB2402B2G is UL listed and suitable for use in plenum spaces, providing a reliable solution for isolating low-voltage control signals from high-voltage motor or lighting loads. The unit includes a pre-wired 16-inch lead set and a red LED indicator for immediate visual status of the relay coil, ensuring streamlined troubleshooting and efficient field installation.
Key Benefits- Multi-Voltage Flexibility: Supports 24 Vac/dc and 208-277 Vac, reducing the need to carry multiple specialized relays.
- High Load Capacity: Rated for 20A resistive and 2 HP at 277V, making it ideal for heavy-duty motor and ballast control.
- Plenum Rated Protection: The NEMA 1 housing is accepted for use in air handling spaces (UL916), ensuring code compliance in commercial builds.
- Instant Diagnostics: Integrated LED status indicator allows for rapid verification of coil activation during commissioning.
- Pre-Wired Design: Standard 16-inch, 600V rated leads and a 0.75-inch NPT nipple simplify mounting to electrical boxes and control panels.
Is the RIB2402B2G suitable for outdoor use?
No, this unit is housed in a NEMA 1 enclosure designed for indoor applications. For outdoor or wash-down environments, a NEMA 4 or 4X rated enclosure would be required.
Can I switch two separate voltages with this relay?
Yes, the DPDT contact type allows you to switch two separate circuits, which can operate at different voltages, provided both stay within the 20A rating.
What is the maximum horsepower rating for this relay?
The relay is rated for 1 HP at 120 Vac and 2 HP at 208-277 Vac, making it suitable for most fractional and small integral horsepower motors.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
