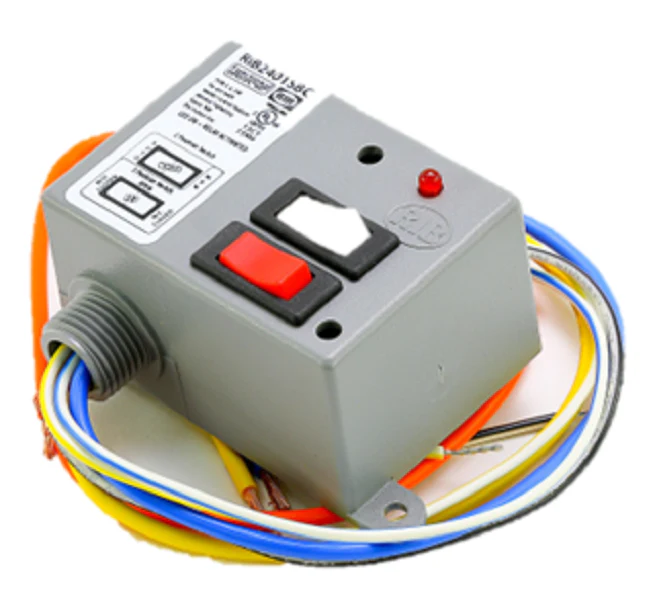

Functional Devices RIB2401SBC Relay
Upgrading or repairing commercial HVAC systems requires heavy-duty control components like the Functional Devices RIB2401SBC Relay. This 20A SPDT enclosed relay is a "Relay in a Box" (RIB®) solution designed to save field labor by eliminating the need for separate sockets and enclosures. It features a versatile 24V AC/DC or 120V AC coil, making it compatible with a wide range of building automation systems (BAS) and lighting controllers. The integrated override control switch allows technicians to manually toggle the load for troubleshooting or emergency operation without a control signal. With a NEMA 1 plenum-rated housing and pre-wired 16-inch leads, this RIB2401SBC power relay is ready for direct hub mounting onto any standard junction box. Its mechanical life is rated for 10 million cycles, ensuring long-term reliability for motor control and damper automation applications.
Key Benefits
- Dual-voltage coil: Supports both 24V AC/DC and 120V AC inputs for maximum application flexibility.
- Simplified installation: Pre-wired in a NEMA 1 enclosure with a 1/2" NPT nipple for rapid mounting.
- Local override switch: Allows for manual "On/Off/Auto" control, essential for commissioning and testing.
- High-capacity switching: Rated for 20 Amp resistive loads and up to 2 HP at 277V AC.
- LED status indicator: Provides immediate visual confirmation of relay activation for faster diagnostics.
Common Questions
Can this relay be used for motor loads?Yes, the RIB2401SBC is rated for 1 HP at 120V AC and 2 HP at 277V AC, making it suitable for fan motors and small pumps.
Is this relay safe for plenum air spaces?Correct. The housing is UL listed and plenum-rated, allowing it to be installed inside ductwork or ceiling spaces when necessary.
What does the 'SBC' suffix indicate?The 'SBC' designation signifies that this model includes the Override Control Switch (On/Auto/Off) and a specific enclosure size, differentiating it from standard 'B' or 'SB' models.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $65.12
-65%$65.12
$22.79Functional Devices RIB2401SBC Relay
Upgrading or repairing commercial HVAC systems requires heavy-duty control components like the Functional Devices RIB2401SBC Relay. This 20A SPDT enclosed relay is a "Relay in a Box" (RIB®) solution designed to save field labor by eliminating the need for separate sockets and enclosures. It features a versatile 24V AC/DC or 120V AC coil, making it compatible with a wide range of building automation systems (BAS) and lighting controllers. The integrated override control switch allows technicians to manually toggle the load for troubleshooting or emergency operation without a control signal. With a NEMA 1 plenum-rated housing and pre-wired 16-inch leads, this RIB2401SBC power relay is ready for direct hub mounting onto any standard junction box. Its mechanical life is rated for 10 million cycles, ensuring long-term reliability for motor control and damper automation applications.
Key Benefits
- Dual-voltage coil: Supports both 24V AC/DC and 120V AC inputs for maximum application flexibility.
- Simplified installation: Pre-wired in a NEMA 1 enclosure with a 1/2" NPT nipple for rapid mounting.
- Local override switch: Allows for manual "On/Off/Auto" control, essential for commissioning and testing.
- High-capacity switching: Rated for 20 Amp resistive loads and up to 2 HP at 277V AC.
- LED status indicator: Provides immediate visual confirmation of relay activation for faster diagnostics.
Common Questions
Can this relay be used for motor loads?Yes, the RIB2401SBC is rated for 1 HP at 120V AC and 2 HP at 277V AC, making it suitable for fan motors and small pumps.
Is this relay safe for plenum air spaces?Correct. The housing is UL listed and plenum-rated, allowing it to be installed inside ductwork or ceiling spaces when necessary.
What does the 'SBC' suffix indicate?The 'SBC' designation signifies that this model includes the Override Control Switch (On/Auto/Off) and a specific enclosure size, differentiating it from standard 'B' or 'SB' models.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
