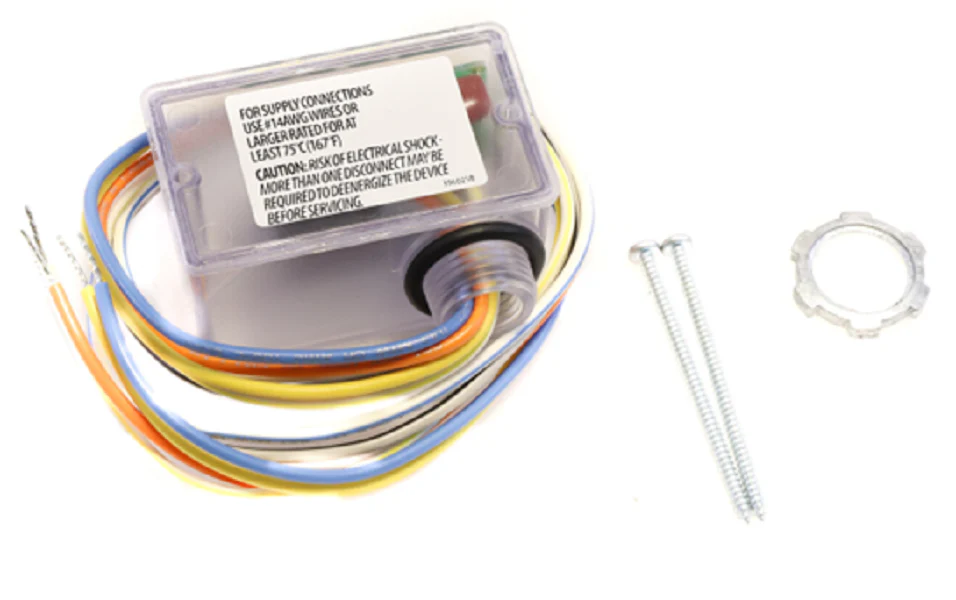

Functional Devices RIB2401C-N4 Relay
The Functional Devices RIB2401C-N4 is a heavy-duty Enclosed TriVolt Relay engineered for demanding HVACR applications requiring NEMA 4X protection. This versatile power relay supports 24 VAC/DC, 120 VAC, or 208-277 VAC inputs, providing maximum field flexibility for building automation and industrial control systems. The SPDT configuration features a 20 Amp rating, making it ideal for managing motor loads, lighting circuits, and high-wattage resistive heaters in environments prone to moisture, dust, and corrosion. Housed in a rugged, weather-resistant enclosure, the RIB2401C-N4 eliminates the need for separate electrical boxes and custom mounting solutions. The integrated LED status indicator allows technicians to verify coil activation at a glance, streamlining troubleshooting for dry contact relay operation. With its pre-wired design and internal isolated coil architecture, this unit ensures reliable switching performance even in high-vibration or wash-down settings where standard pilot relays fail.
Key Benefits for Contractors- Universal Input Voltage: Tri-voltage capability (24V, 120V, 208-277V) reduces inventory requirements by replacing multiple dedicated parts.
- NEMA 4/4X Enclosure: Provides a watertight, dust-tight seal for outdoor installations and corrosive environments.
- High Amperage Capacity: 20 Amp inductive load switching handles heavy-duty equipment without additional power contractors.
- Simplified Installation: Comes pre-enclosed with fly-leads, significantly reducing labor time on the job site.
Can the RIB2401C-N4 be mounted outdoors for rooftop units?
Yes, the NEMA 4/4X rating ensures full protection against rain, snow, and hose-directed water, making it perfect for external HVAC equipment and industrial control relay applications.
What is the maximum horsepower rating for this relay?
The RIB2401C-N4 is rated for 1 HP at 120 VAC and 2 HP at 277 VAC, providing reliable starts for motors and fans.
How do the color-coded leads work for voltage selection?
The Functional Devices RIB series uses specific wire colors for each input voltage; ensure the unused leads are capped off to prevent short circuits during operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
