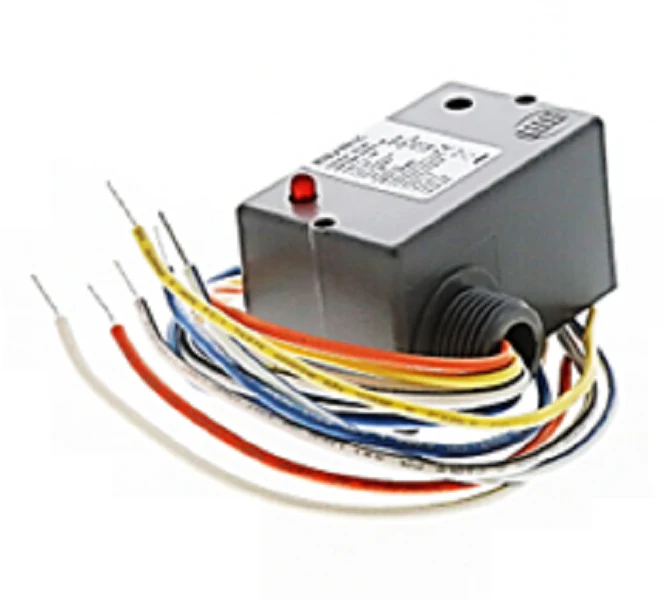

Functional Devices RIB2401C Enclosed Relay
The Functional Devices RIB2401C is a versatile pilot duty enclosed relay designed for reliable control in HVAC, lighting, and energy management systems. This SPDT relay features a 10 Amp contact rating and is housed in a durable NEMA 1 enclosure, making it suitable for mounting directly to an electrical box or inside a control panel. Engineered with a dual-coil design, it supports 24Vac/dc or 120Vac input voltages, providing maximum flexibility for field installations. The integrated LED indicator offers immediate visual feedback of the coil status, facilitating faster diagnostic troubleshooting for technicians. Its compact pigtail lead configuration simplifies wiring in tight spaces, ensuring a clean and professional termination. Whether controlling exhaust fans, dampers, or integrating with a Building Automation System (BAS), the RIB2401C provides a robust isolation solution that maintains electrical separation between control circuits and power loads.
Key Benefits for the Jobsite:- Multi-Voltage Compatibility: Operates on 24Vac/dc or 120Vac, reducing the number of SKUs required on the service truck.
- Pre-Wired convenience: Features color-coded 12-inch wire leads to accelerate installation and minimize field wiring errors.
- NEMA 1 Rated Enclosure: UL-listed housing protects internal components and meets code requirements for enclosed electrical devices.
- Visual Diagnostics: High-visibility LED provides real-time status of the relay coil, streamlining system commissioning.
- High Load Capacity: Rated for 10 Amp resistive loads, making it ideal for standard commercial and industrial switching applications.
Can the RIB2401C be used to switch both AC and DC loads?
Yes, the SPDT contacts are rated for both 120Vac and 30Vdc applications, allowing for versatile switching across different control platforms.
What is the maximum ambient temperature rating for this relay?
The RIB2401C is designed to operate reliably in environments ranging from -30 to 140 degrees Fahrenheit, suitable for most mechanical room conditions.
How do I mount this relay to a standard junction box?
The unit features a 1/2-inch NPT nipple that mounts through a standard knockout, secured by the included plastic locknut for a stable connection.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
