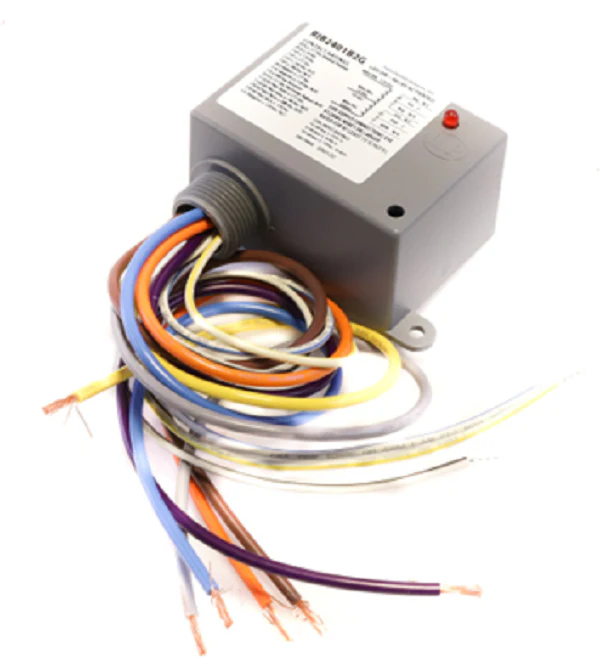

Functional Devices RIB2401B2G Relay
The Functional Devices RIB2401B2G is a heavy-duty 20 Amp power control relay engineered for high-performance HVAC and building automation applications. This DPDT enclosed relay features a versatile 24VAC/DC and 120VAC coil, allowing technicians to interface low-voltage control signals with line-voltage loads with absolute precision. Housed in a durable NEMA 1 enclosure with a .75-inch NPT nipple, this pre-wired relief module simplifies installation in lighting panels, motor control circuits, and fan logic systems. With a mechanical life expectancy of 10 million cycles and a continuous duty coil, it provides the reliability required for critical commercial and industrial environments.
The RIB2401B2G supports dual SPDT ganged operation, making it ideal for switching multiple circuits simultaneously. It is rated for 20A general purpose loads at 277VAC and can handle up to 2 HP at 240VAC, ensuring compatibility with heavy inductive loads like compressors and blowers. The integrated LED indicator provides immediate visual confirmation of the relay status, while the 16-inch 600V rated leads offer sufficient length for secure terminations within junction boxes or control cabinets.
Key Benefits- Universal Coil Compatibility: Operates on 24VAC, 24VDC, or 120VAC, reducing the need to carry multiple SKUs on the truck.
- High Load Capacity: Rated for 20 Amp inductive and resistive loads, suitable for heavy-duty HVAC motors and lighting ballasts.
- Rugged NEMA 1 Enclosure: Protects internal components and meets requirements for plenum-rated spaces and industrial environments.
- Simplified Wiring: Pre-wired with color-coded 16-inch leads to accelerate field installation and reduce labor costs.
Can the RIB2401B2G be used to control two separate 120V loads?
Yes, as a DPDT relay with dual sets of contacts (Form C), it can switch two independent circuits or both legs of a 240V load simultaneously.
What is the purpose of the LED on the housing?
The LED provides a real-time status update; when illuminated, it indicates the coil is energized and the relay is activated, assisting in rapid troubleshooting.
Is this relay suitable for mounting directly to a junction box?
Absolutely. The .75-inch threaded nipple allows for easy mounting through a standard knockout on any electrical box or panel.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
