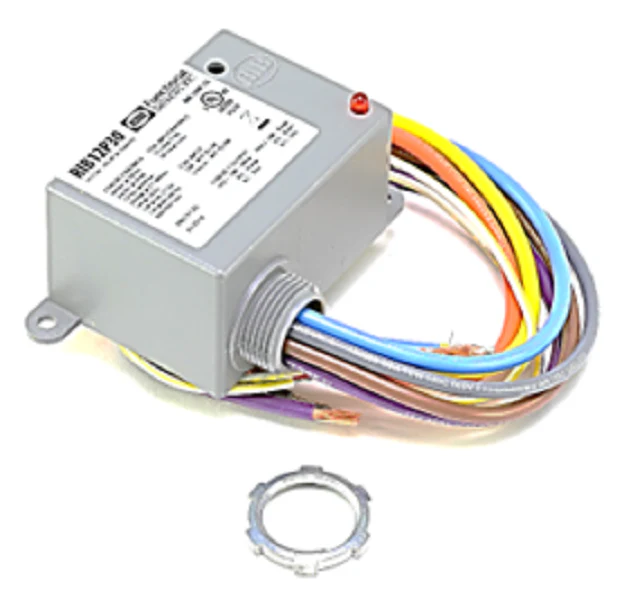

Functional Devices RIB12P30 Relay
The Functional Devices RIB12P30 is a heavy-duty, 30 Amp DPDT enclosed relay designed for demanding commercial HVAC and building automation applications. As a veteran-preferred "Relay in a Box," this unit simplifies field installs by integrating the relay, 12 Vac/dc coil, and a visible LED status indicator within a rugged NEMA 1 housing. Its Double Pole Double Throw (DPDT) configuration allows for simultaneous control of two separate circuits, making it an essential component for interlocking high-voltage equipment like exhaust fans, pumps, or electric heaters with low-voltage control signals. The unit features 16-inch, 600V rated wire leads and a 0.50-inch NPT nipple for direct mounting to electrical boxes or plenums, ensuring a clean and secure technical electrical installation. Built for high-cycle reliability with a 10-million mechanical cycle rating, the RIB12P30 relay is UL listed and plenum rated, meeting strict safety codes for diverse industrial environments.
Key Benefits- Dual-Circuit Control: The DPDT contact configuration allows for switching two independent 30 Amp loads from a single low-voltage trigger.
- Simplified Wiring: Pre-wired with 16-inch color-coded leads, reducing labor time during HVAC relay wiring and field setup.
- Internal Protection: Features a continuous duty coil and transient protection to prevent premature failure in noisy electrical environments.
- Plenum Rated: The compact, UL-approved housing is safe for use in environmental air spaces, including drop ceilings and ductwork.
- Visual Diagnostics: An externally visible LED provides instant confirmation of the relay coil status, streamlining troubleshooting for technicians.
Can I use the RIB12P30 for motor loads?
Yes, this enclosed power relay is rated for 1 HP at 120 Vac and up to 3 HP at 480–600 Vac, making it suitable for standard motor-starting applications.
Is the coil compatible with both AC and DC signals?
The 12V Vac/dc relay coil is designed to operate efficiently on either 12 Vac or 12 Vdc control circuits without modification.
Does this unit require a separate enclosure?
No, the RIB12P30 is self-contained in a NEMA 1 enclosure, providing professional protection and mounting without the need for an external electrical box.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
