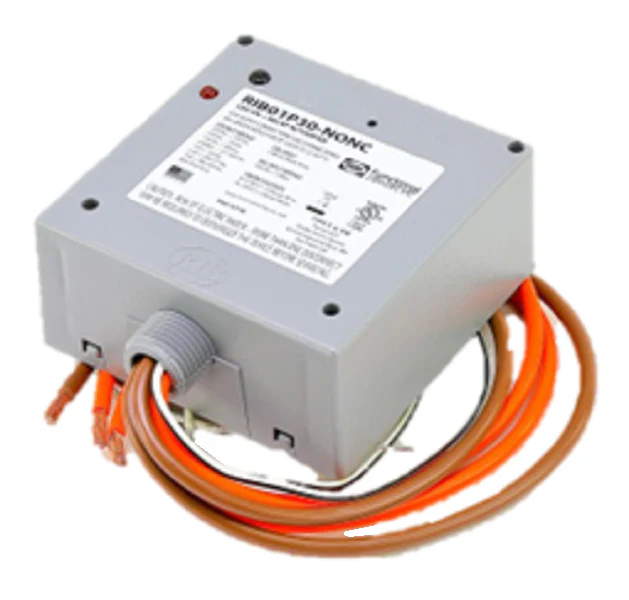

Functional Devices RIB01P30-NONC Relay
The Functional Devices RIB01P30-NONC Relay is a heavy-duty, field-proven solution for contractors managing high-current HVACR and industrial automation loads. This 30A DPST relay features a dual-pole configuration with one Normally Open (NO) and one Normally Closed (NC) contact set, providing versatile switching logic for energy management and fire safety systems. Housed in a NEMA 1 plenum-rated enclosure, it is engineered for surface, nipple, or screw mounting, making it an ideal choice for clean installations in air-handling spaces. The 120V AC coil consumes minimal current while driving a mechanism rated for 10 million mechanical cycles. An integrated LED indicator provides immediate visual confirmation of the relay state, simplifying troubleshooting in the field. With UL 916 and UL 864 approvals, this enclosed relay meets rigorous standards for both energy management and fire protective signaling, ensuring reliable performance in demanding environments.
Key Benefits for Technicians
- High Amperage Capacity: Rated for 30 Amp resistive loads, allowing for direct control of heavy equipment without secondary contactors.
- Versatile Contact Logic: The DPST (NO/NC) configuration supports simultaneous switching of multiple circuits or fail-safe operations.
- Plenum Rated: The compact gray plastic housing is suitable for installation within environmental air spaces.
- Simplified Wiring: Features 16-inch color-coded wire leads and a 1/2" NPT nipple for rapid integration into junction boxes.
- Rugged Reliability: Designed to operate in extreme conditions ranging from -30°F to 140°F.
Common Questions
Can this relay be used for fire alarm applications?
Yes, the RIB01P30-NONC is UL 864 Fire Listed and CSFM approved, making it suitable for interface with fire alarm control panels and smoke control systems.
What does the LED indicator signify?
The LED status indicator illuminates when the 120V AC coil is energized, allowing for quick diagnostic verification of the control signal presence.
Is the enclosure suitable for outdoor use?
No, this model features a NEMA 1 enclosure designed for indoor use or within protected environmental air spaces. For outdoor applications, a NEMA 4 or 4X rated RIB relay should be used.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
