Functional Devices PSMN40A24DS Power Supply

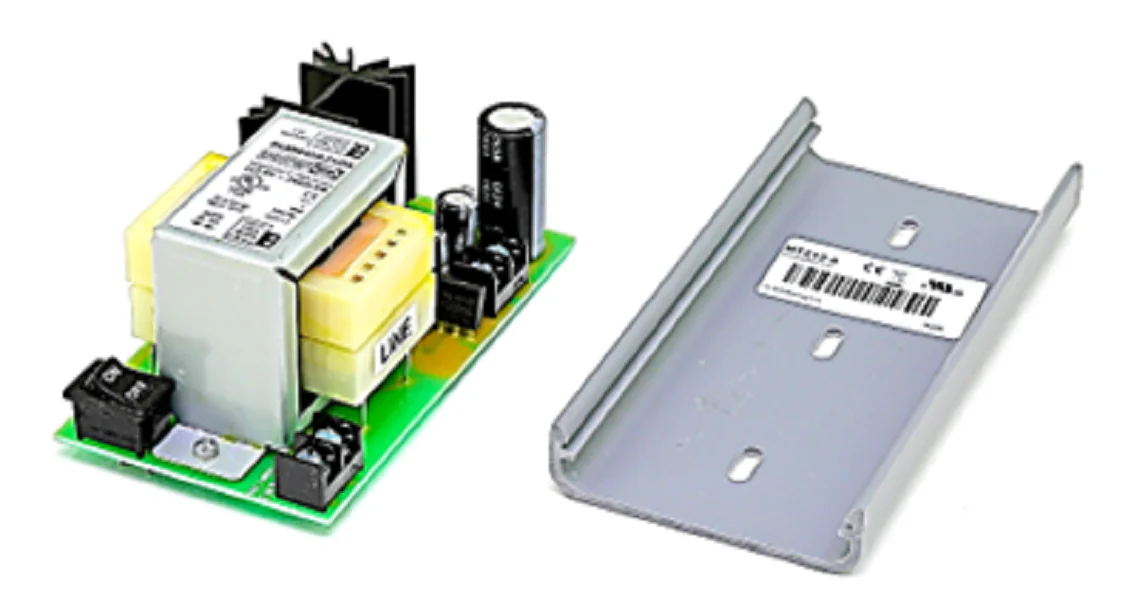

For industrial automation and building management systems requiring a reliable voltage source, the Functional Devices PSMN40A24DS offers a precision-engineered solution. This track mount isolated linear DC power supply converts a 120 VAC input into a steady 24 VDC output at a maximum 1 Amp current rating. Designed for high-performance HVACR control circuits, the unit features full-wave rectification and linear regulation to ensure minimal ripple voltage (0.0016%), protecting sensitive electronic components from electrical noise. The PSMN40A24DS is UL Listed for Class 2 circuits (UL916), making it a code-compliant choice for modern energy management systems. The assembly is equipped with a two-position ON/OFF switch for local service isolation and a diagnostic LED indicator for immediate power status verification. With a wide operating temperature range from -30° to 140°F, this robust power supply maintains stability in demanding mechanical room environments. The included MT212-6 mounting track allows for seamless integration into standard 2.75-inch snap-track setups.
Key Benefits:- Precise Voltage Regulation: Delivers clean, isolated 24 VDC to prevent control logic errors in sensitive HVACR equipment.
- Simplified Installation: 2.75-inch track mount design with included MT212-6 track facilitates rapid mounting within control panels.
- Enhanced Circuit Protection: Features built-in thermal and electrical overload protection with an auto-reset function to safeguard downstream devices.
- Clear Diagnostics: Integrated LED activation light and manual toggle switch allow technicians to perform quick troubleshooting and safe maintenance.
- Class 2 Approved: Meets UL916 and UL5085-3 standards, ensuring compliance with strict safety requirements for low-voltage power distribution.
Can this power supply handle a 24 VAC input instead of 120 VAC?
The PSMN40A24DS is specifically designed for 120 VAC primary input. For projects requiring 24 VAC to 24 VDC conversion, refer to the PSMN24 series equivalents.
Is the DC output voltage adjustable on this model?
This specific model provides a fixed 24 VDC output. If your application requires fine-tuning, verify the specific line regulation and load regulation requirements of your controller before installation.
What is the maximum current load for the PSMN40A24DS?
This unit supports a continuous output of 1 Amp. Exceeding this rating may trigger the thermal overload protection; always calculate the total VA draw of your connected sensors and actuators.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
