Functional Devices PSH600-UPS-BC Enclosed BACnet Network

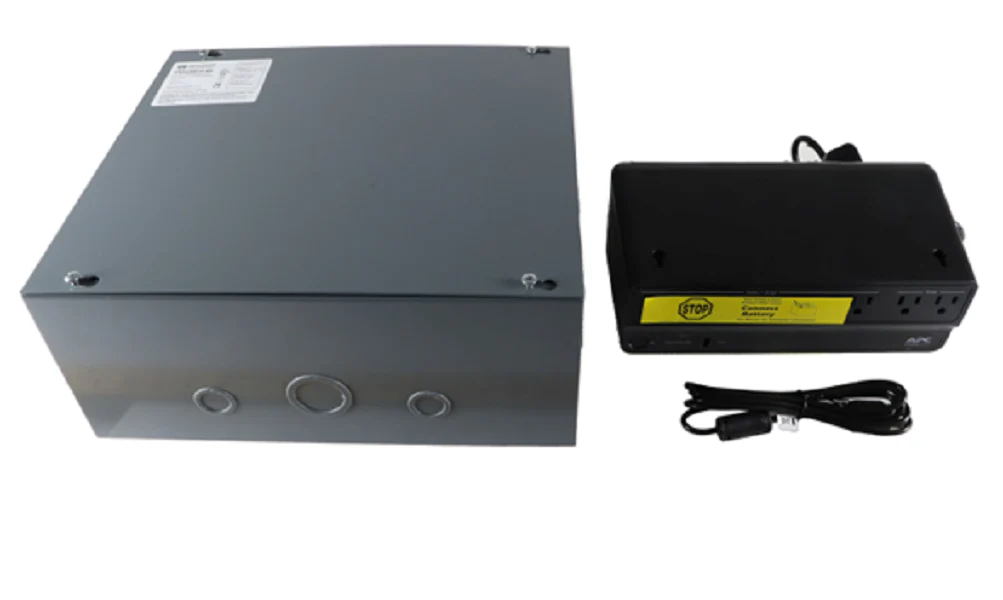

The Functional Devices PSH600-UPS-BC is a heavy-duty, enclosed BACnet network 600 VA UPS backup power control center engineered for critical building automation systems. Designed for reliability in hospitals, laboratories, and high-uptime facilities, this NEMA 1 metal enclosure integrates a 600 VA uninterruptible power supply with a specialized BACnet MS/TP interface. This allows technicians to monitor the UPS load (VA and %), battery capacity, and line power status directly through the BMS. The unit features built-in short-circuit protection via a 10A main breaker/switch and provides multiple 120 Vac outlets, including a protected outlet for sensitive controllers and a convenience receptacle for field tools. Its DIP switch selectable baud rate (9600 to 115200) ensures seamless communication within standard MS/TP networks. The 12" x 14" x 6" housing includes status LEDs for real-time diagnostics of network comms, backup power, and device status, making it a rugged solution for uninterruptible power supply kit requirements in professional HVACR environments.
Key Benefits- Critical Data Protection: Provides approximately 2.5 minutes of runtime at a full 600 VA load to prevent data loss during sudden power interruptions.
- Predictive Maintenance: Remote monitoring of battery runtime and capacity via BACnet allows for scheduled replacements before field failure occurs.
- Simplified Installation: Pre-enclosed in a NEMA 1 metal housing with conduit knockouts and an included 14/3 line cord for rapid field deployment.
- Selectable Communication: On-board DIP switches allow for easy addressing and baud rate configuration without needing external software.
Can I monitor the battery health over the network?
Yes, the integrated interface board reports the battery capacity and estimated remaining runtime directly to your BACnet MS/TP network for centralized tracking.
What is the maximum load this unit can handle?
The PSH600-UPS-BC is rated for a maximum load of 600 VA (approximately 330W) for the backup outlets and a combined 10A for the entire control center.
Is the MS/TP network addressable?
The device uses DIP switches to set the MS/TP address and baud rate. By default, the Device ID follows the 277XXX format based on the selected address but can be modified via network commands.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
