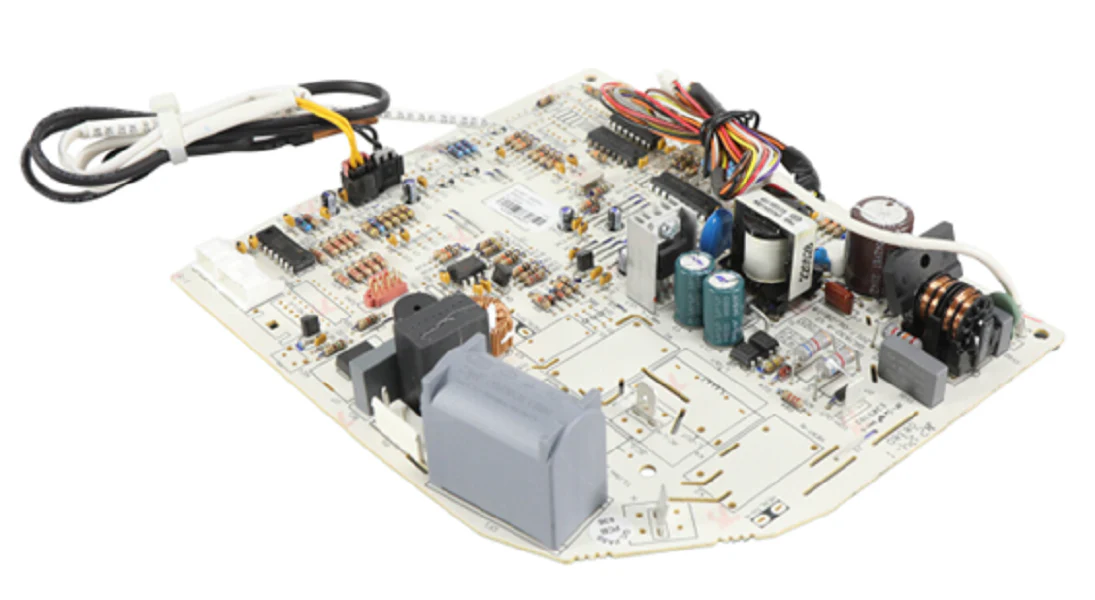

Friedrich Air Conditioning 69700298 Main Board
The Friedrich 69700298 Main Control Board is the primary logic controller engineered for high-performance Friedrich air conditioning units, including specific models within the Chill and Chill+ series. This authentic OEM Friedrich replacement part manages critical system functions such as compressor cycling, fan motor speeds, and thermal regulation via thermistor inputs. As a field-ready HVAC control board, it ensures proper communication between the user interface and mechanical components. When diagnosing Friedrich AC power issues or erratic cooling cycles, replacing a faulted circuit board is essential to restoring factory-spec operation. Built to handle the high-amperage demands of room air conditioners, this high-voltage control module features robust soldering and integrated relays to prevent premature failure due to voltage spikes. For contractors performing service calls, verifying this specific part number against the unit's data plate is necessary to ensure electrical compatibility and proper terminal pin alignment during installation.
Key Benefits
- Direct OEM Replacement: Matches original factory specifications for seamless integration into Friedrich window AC units.
- Precision Logic Control: Ensures accurate temperature sensing and optimized compressor run times to maintain EER ratings.
- Multi-Speed Fan Support: Properly sequences AC fan motor speeds to manage airflow and humidity removal.
- Durable Construction: Engineered with industrial-grade traces to withstand the thermal stress of continuous seasonal operation.
Common Questions
How do I know if the Friedrich 69700298 board is faulty?
Common indicators include the compressor failing to engage despite a cooling call, an unresponsive digital display, or the fan motor failing to switch speeds. Always test the capacitor and incoming line voltage before replacing the main PCB.
Is this control board compatible with heat pump models?
The 69700298 is primarily designed for cooling-only and electric heat models. For heat pump reversing valve control, consult the specific wiring diagram on the unit's cabinet to ensure this board supports the necessary outputs.
Does this board include a new thermistor?
This is the standalone main control board. While it features the headers for AC temperature sensors, the sensors themselves are typically sold separately unless specified in the service kit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
