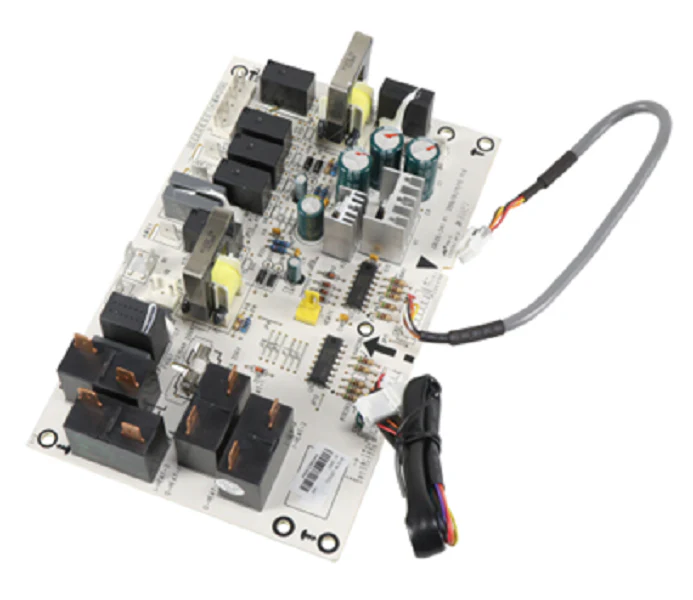

Friedrich Air Conditioning 68700208 Main Board
When you are troubleshooting a Friedrich ZoneAire Premier Series PTAC that has lost communication between the thermostat and the mechanical components, the Friedrich Air Conditioning 68700208 Main Board is the primary investigative point. This genuine OEM replacement control board (cross-referenced as 30132164) is the central logic hub for the system, regulating the compressor cycles, fan speed delays, and safety protocols. Whether you are dealing with a blank display or a PTAC error code related to the indoor coil sensor, this board restores factory-standard HVAC system performance and energy efficiency by ensuring precise voltage distribution across all relays.
Ruggedly built for high-duty cycle packaged terminal air conditioner (PTAC) environments, this printed circuit board (PCB) manages the sequence of operation for both cooling and heating modes. Designed specifically for models like the PDE12R3SG and PDH15R5SG, it eliminates the "phantom inputs" and intermittent resets often caused by degraded capacitors on aging field units. As a technical professional, you know that keeping a Friedrich AC main control board in your van ensures you can quickly resolve HVAC circuit board troubleshooting calls without multiple site visits.
Key Benefits:- OEM Compatibility: Specifically engineered for Friedrich ZoneAire units, including the PDE, PDH, and K3SG series, ensuring a direct-fit replacement for part 68700208.
- Precision Control: Orchestrates the coordination between the blower motor and the compressor to maintain tight temperature differentials and prevent coil freeze-up.
- System Protection: Integrated safety protocols monitor voltage fluctuations and thermal safety limits to protect high-cost components from premature failure.
- Direct Interface: Features a standardized layout for terminal connections, reducing the risk of wiring errors during field installation.
- How do I confirm the board is defective? Verify the line voltage at the primary transformer terminal. If the board is receiving 120V/240V but failing to output 24V to the contactor or fan relay, a circuit failure or burnt diode is likely present.
- What does a blank PTAC screen indicate? First, check the breaker and the 3-amp fuse on the main board. If the fuse is intact but the diagnostic LED is dark, the logic board has likely reached its end-of-life.
- Is this board compatible with Frigidaire models? Yes, this part is cross-compatible with Frigidaire 30132165 and FFRP122LT6, making it a versatile air conditioner circuit board for various manufacturer footprints.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
