Friedrich Air Conditioning 68700112 Transformer

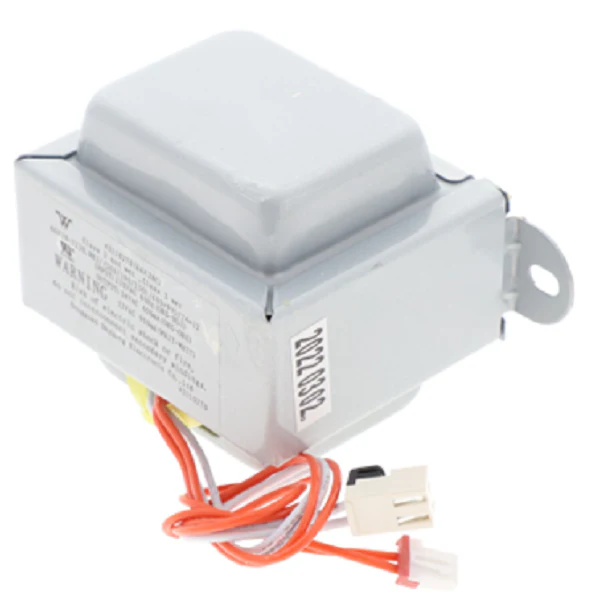

The Friedrich 68700112 Transformer is a critical replacement component engineered for HVAC professionals servicing Friedrich air conditioning units. This multi-tap step-down transformer features a 230V primary voltage input and dual secondary outputs providing 24V and 12V power supply to control boards, relays, and diagnostic circuits. Designed for high-duty cycle reliability, the 68700112 ensures consistent voltage regulation across sensitive electronic components, preventing board failure due to fluctuating line voltage. Its robust construction with high-grade copper windings and secure terminal connections minimizes thermal loss and electromagnetic interference. Whether you are performing a standard maintenance overhaul or troubleshooting a low voltage control circuit issue, this direct OEM replacement maintains the factory-specified impedance needed for proper system modulation. Confirming Friedrich AC part compatibility is essential, as this transformer is tailored to specific cabinet configurations requiring precise amperage draw for 24-volt contactor coils and secondary 12-volt logic circuits.
Key Benefits for Technicians:- Dual Secondary Output: Integrated 24V and 12V leads streamline wiring for complex Friedrich control systems.
- Direct OEM Fit: Drop-in replacement with exact mounting footprints to reduce labor time on service calls.
- Enhanced Thermal Stability: Engineered to handle the high ambient temperatures common in condenser cabinets without degradation.
- Precise Voltage Conversion: Maintains consistent VA rating to protect integrated circuit boards and microprocessors from brownouts.
Is this transformer compatible with generic HVAC control boards?
While it follows standard 230-to-24V transformer specs, the specific 12V secondary tap is proprietary to Friedrich logic circuits; check your wiring schematic to ensure dual-voltage requirements match.
Why is my Friedrich unit dropping 24V control power?
Repeated transformer failure often points to a shorted contactor coil or a grounded control wire. Always check the total VA draw before installing a new 68700112 transformer.
What are the wiring leads color codes for this model?
Standard Friedrich configuration uses the 230V primary leads for line input, with color-coded secondary leads for the 24V and 12V outputs. Refer to the internal unit diagram for terminal mapping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $41.47
-65%$41.47
$14.51Friedrich Air Conditioning 68700112 Transformer
The Friedrich 68700112 Transformer is a critical replacement component engineered for HVAC professionals servicing Friedrich air conditioning units. This multi-tap step-down transformer features a 230V primary voltage input and dual secondary outputs providing 24V and 12V power supply to control boards, relays, and diagnostic circuits. Designed for high-duty cycle reliability, the 68700112 ensures consistent voltage regulation across sensitive electronic components, preventing board failure due to fluctuating line voltage. Its robust construction with high-grade copper windings and secure terminal connections minimizes thermal loss and electromagnetic interference. Whether you are performing a standard maintenance overhaul or troubleshooting a low voltage control circuit issue, this direct OEM replacement maintains the factory-specified impedance needed for proper system modulation. Confirming Friedrich AC part compatibility is essential, as this transformer is tailored to specific cabinet configurations requiring precise amperage draw for 24-volt contactor coils and secondary 12-volt logic circuits.
Key Benefits for Technicians:- Dual Secondary Output: Integrated 24V and 12V leads streamline wiring for complex Friedrich control systems.
- Direct OEM Fit: Drop-in replacement with exact mounting footprints to reduce labor time on service calls.
- Enhanced Thermal Stability: Engineered to handle the high ambient temperatures common in condenser cabinets without degradation.
- Precise Voltage Conversion: Maintains consistent VA rating to protect integrated circuit boards and microprocessors from brownouts.
Is this transformer compatible with generic HVAC control boards?
While it follows standard 230-to-24V transformer specs, the specific 12V secondary tap is proprietary to Friedrich logic circuits; check your wiring schematic to ensure dual-voltage requirements match.
Why is my Friedrich unit dropping 24V control power?
Repeated transformer failure often points to a shorted contactor coil or a grounded control wire. Always check the total VA draw before installing a new 68700112 transformer.
What are the wiring leads color codes for this model?
Standard Friedrich configuration uses the 230V primary leads for line input, with color-coded secondary leads for the 24V and 12V outputs. Refer to the internal unit diagram for terminal mapping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
