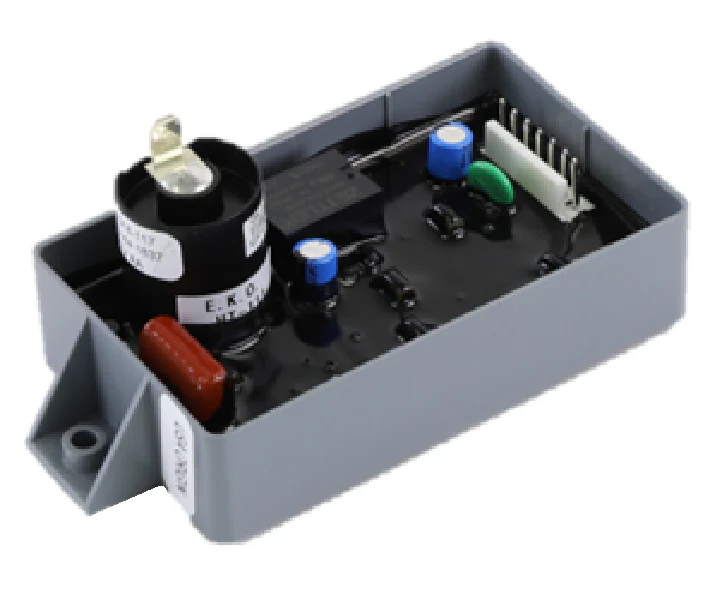

Fenwal 35-725918-117 Ignition Module
The Fenwal 35-725918-117 Ignition Module is a specialized 120 VAC direct spark ignition control engineered for high-demand commercial cooking and heating applications, specifically within American Cook equipment. Operating as a microprocessor-based system, this module provides precise sequence timing and flame sensing for both LP and natural gas configurations. The 35-725918-117 is designed to withstand the rigorous environments of commercial kitchens, featuring a robust potted construction that protects internal circuitry from washdown, moisture, and high-frequency vibrations. With its multi-pin connector, technicians can ensure a secure, simplified wiring interface, reducing the risk of intermittent signals. This DSI control utilizes a 15-second trial for ignition and includes an automatic reset function via thermostat or power interruption, ensuring the system maintains operational continuity without manual intervention after a lockout event.
Key Contractor Benefits
- Enhanced Durability: The potted design is specifically built for 120V gas-fired equipment exposed to grease and humidity.
- Precise Flame Detection: Microprocessor logic ensures accurate remote sense or single spark and sense capabilities to prevent nuisance tripping.
- Direct Compatibility: Designed as a direct replacement for American Cook ignition modules, ensuring correct fitment and terminal alignment.
- Field Reliability: High-voltage spark output provides consistent direct spark ignition even in variable gas pressure conditions.
Common Questions
What is the primary power requirement for this Fenwal module?
The Fenwal 35-725918-117 operates on a 120 VAC, 60Hz input, making it standard for various commercial infrared heaters and commercial ovens.
How does the system reset after a lockout?
This module features a power-off reset; simply cycle the thermostat or the main power supply to clear the lockout and initiate a new trial for ignition.
Can this be used with both Natural Gas and Propane?
Yes, as a direct spark ignition control, it is compatible with both fuel types, provided the gas valve and orifice are correctly configured for the specific fuel.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
