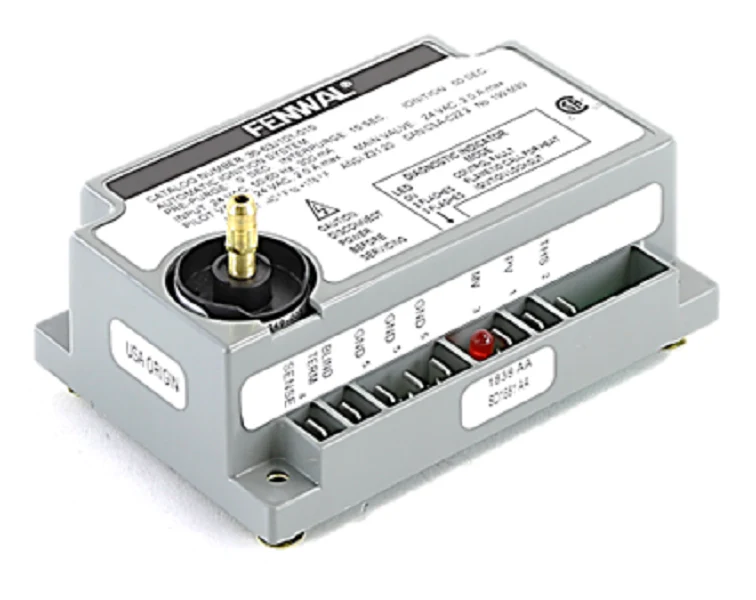

Fenwal 35-63J101-015 Control
The Fenwal 35-63J101-015 is a robust 24VAC Intermittent Pilot Ignition (IPI) control module engineered for precision gas valve sequencing. This unit serves as a high-reliability direct spark ignition controller for gas-fired heating equipment, featuring a 15-second ignition trial and a 30-second prepurge cycle to ensure safe combustion environments. Designed for micro-processor-based flame sensing, it utilizes flame rectification technology to monitor the pilot flame, providing a 100% shut-off safety lockout if ignition is not established. This specific model is a common Johnson Controls replacement for various legacy ignition boards, making it a versatile component for field service repairs. Built with transient protection and a rugged potting compound, this Fenwal ignition module maintains consistent operation in high-vibration and moisture-prone HVAC environments, ensuring compatibility with S8610U and similar intermittent pilot systems.
Key Technical Benefits- Multi-Pin Connector: Simplifies field installation and ensures secure electrical contact for HVAC service technicians.
- Diagnostic LED: Provides immediate troubleshooting feedback to reduce onsite diagnostic time.
- Prepurge Timing: Includes a fixed 30-second prepurge to clear the combustion chamber before the spark-to-pilot sequence.
- Robust Construction: Engineered to withstand the thermal cycling common in commercial and residential boiler applications.
Is the Fenwal 35-63J101-015 compatible with 120VAC systems?
No, this specific control is designed for 24VAC 60Hz circuits only. Attempting to apply line voltage will result in immediate board failure.
Can this module replace a standing pilot system?
This is an intermittent pilot ignition control. Converting a standing pilot to IPI requires a complete system redesign including the pilot burner assembly and gas valve.
What does a 100% shut-off lockout mean?
If the flame sensor does not detect a signal within the 15-second trial for ignition, the module closes all gas valves and requires a manual power reset.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $196.47
-65%$196.47
$68.76Fenwal 35-63J101-015 Control
