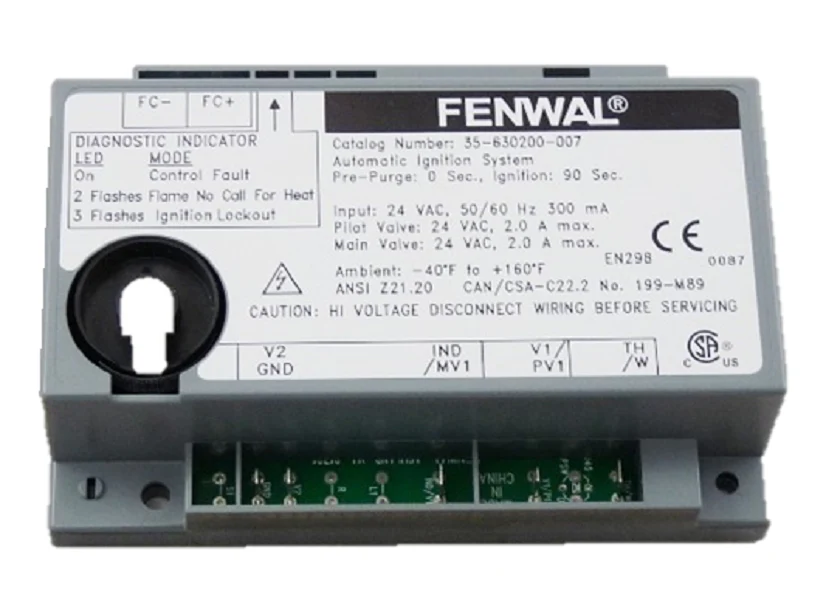

Fenwal 35-630200-007 Module
The Fenwal 35-630200-007 is a high-performance 24V intermittent pilot ignition control engineered for precision timing and robust flame monitoring in commercial gas-fired equipment. This microprocessor-based module is designed to manage spark-to-pilot ignition sequences with zero prepurge and a 90-second Trial for Ignition (TFI), ensuring immediate response upon a call for heat. Built for field reliability, it utilizes DETECT-A-FLAME technology to provide high-sensitivity flame rectification, reducing nuisance lockouts in demanding environments. The unit features an on-board diagnostic LED for rapid troubleshooting and provides dedicated flame current test points for technicians to verify signal strength (minimum 0.7 microamps) during commissioning or maintenance. This durable multi-trial ignition module is Noryl-enclosed and compatible with natural, manufactured, and LP gas systems. Its compact footprint supports standard 4-inch junction box mounting, making it a drop-in solution for unit heaters, commercial ovens, and boilers requiring a genuine Fenwal replacement part.
Key Benefits:
- Precise Microprocessor Control: Delivers repeatable 90-second TFI and 0-second prepurge for consistent burner performance.
- Advanced Diagnostics: Built-in LED provides clear fault codes, significantly reducing diagnostic time on the job site.
- Flame Rectification Reliability: Integrated test points allow for direct DC microamp measurements of the flame signal.
- Flexible Installation: Universal mounting design and multi-gas compatibility (Natural/Propane) fit various light-commercial applications.
- Safe Start Technology: Self-checking circuitry prevents the gas valve from opening if a false flame is detected during startup.
Common Questions:
- What does a flashing LED on the 35-630200-007 indicate? Flashing patterns typically represent specific system faults such as ignition lockout or low voltage; refer to the onboard diagnostic chart for precise error identification.
- Can this module replace a single-trial ignition control? This is a multi-trial model; check the appliance's original sequence of operation to ensure compatibility with 90-second TFI timings.
- Is a separate flame sensor required? This control supports both local (single rod) and remote sensing depending on the wiring configuration of your specific gas burner.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
