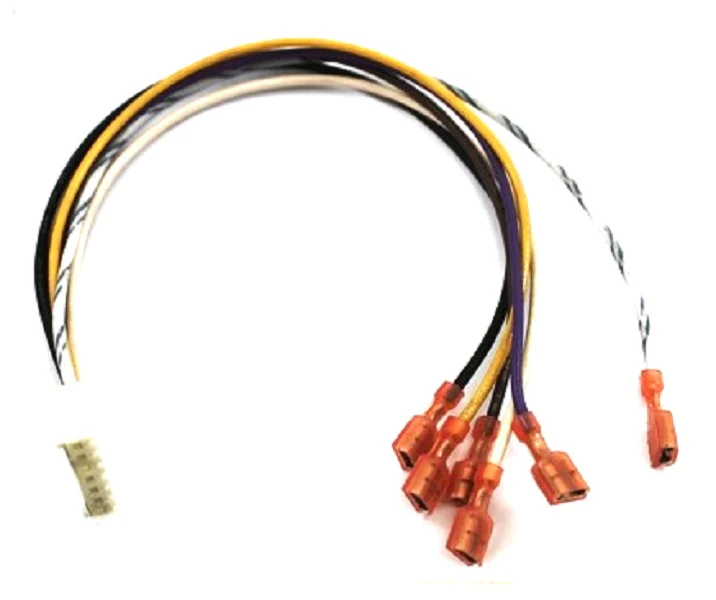

Fenwal 05-129893-112 Wiring Harness
The Fenwal 05-129893-112 Wiring Harness is a critical interface component engineered specifically for the 35-72 series gas ignition controls. This multi-pin harness ensures precise signal transmission between the DSI ignition module and the system's gas valves, sensors, and power supply. Designed for heavy-duty HVACR applications, it features high-temperature insulation and secure terminal connections to mitigate resistance and prevent signal degradation in demanding environments. For technicians servicing commercial heating units, this harness provides a direct fit for 24VAC systems, facilitating a reliable bridge for spark ignition sequences and flame rectification monitoring. Incorporating this high-grade HVAC wire assembly ensures that the integrated circuit logic of the Fenwal controller receives accurate feedback, maintaining system safety and operational uptime without the risk of intermittent failures common in generic alternatives.
- Ensures seamless pigtail connection compatibility with Fenwal 35-72 Series controllers.
- Constructed with industrial-grade materials for superior thermal and chemical resistance.
- Reduces installation time for gas ignition repair by providing a standardized wiring pinout.
- Optimized for stable 24VAC control circuit performance in commercial boilers and furnaces.
Common Installation Questions
Is this harness compatible with all 35-72 series modules?
Yes, the 05-129893-112 is designed for the standardized pin configurations of the 35-72 DSI series, though technicians should always verify the specific wiring diagram of the appliance.
How do I ensure a secure connection at the terminal block?
Inspect the pins for any signs of oxidation and ensure the locking tabs on the harness connector click firmly into the module housing to prevent vibration-induced disconnects.
Can this harness be used for retrofitting older Fenwal systems?
This Fenwal 05-129893-112 is specific to the 35-72 series; if you are upgrading from a different series, check the pin count and gauge requirements to ensure electrical compatibility.
