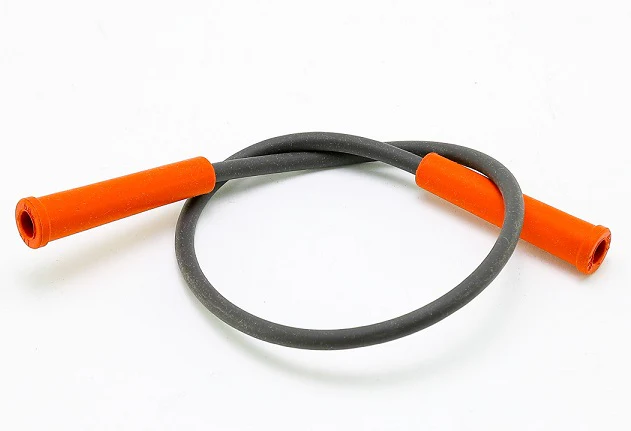

Fenwal 05-129608-922 Cable
The Fenwal 05-129608-922 is a high-performance 7mm suppression cable designed for critical ignition sequencing in HVACR heating systems and industrial thermal processing. This ignition wire assembly features high-dielectric insulation to prevent voltage leakage and electromagnetic interference (EMI) during the spark cycle. Engineered to withstand the thermal cycling common in burner compartments, this Fenwal ignition cable ensures consistent signal integrity between the ignition control module and the electrode assembly. Technical specifications focus on high-temperature resistance and precise impedance matching for Fenwal 05 series controls. When replacing an Oem spark plug wire in a commercial furnace or boiler, maintaining this specific resistance profile is essential to prevent nuisance lockouts or erratic flame sensing signals. Professionals prioritize this 7mm spark cable for its durability against chemical exposure and mechanical wear in demanding mechanical rooms, ensuring long-term reliability in specialized combustion applications.
- RFI/EMI Suppression: Engineered to minimize electrical noise that interferes with sensitive flame rectification circuits.
- High-Dielectric Strength: Prevents arcing and voltage drops to ensure a strong, consistent spark at the burner.
- Thermal Endurance: Rated for high-ambient temperatures typically found in the combustion chamber proximity.
- Direct Compatibility: Designed for seamless integration with Fenwal electronic ignition systems and spark electrodes.
Common Technical Questions
Does this cable require specific terminal tools for installation?
This assembly is typically pre-terminated for Fenwal ignition controls, but verify terminal compatibility with your specific electrode connection to ensure a low-resistance fit.
Can I use standard automotive wire instead of this 7mm suppression cable?
No. Standard wiring lacks the specific impedance and thermal ratings required for HVAC burner ignition cycles, which can lead to module failure or ignition lag.
How does this cable impact flame sensing?
In systems utilizing local sensing, the 05-129608-922 provides the necessary shielding to prevent signal interference from masking the microamp flame current.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
