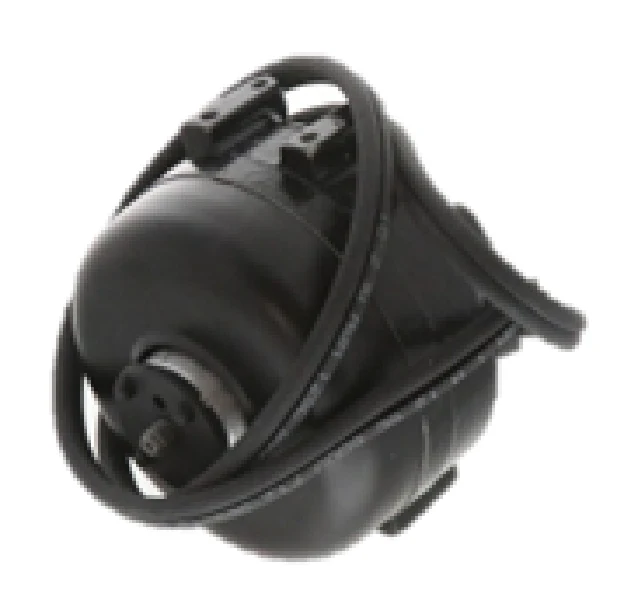

Fasco UB589 Motor
The Fasco UB589 is a professional-grade 4-watt unit bearing refrigeration motor designed for continuous duty in demanding HVACR environments. Engineered as a shaded pole motor, this 115V component operates at 1450 RPM with a precise CCWOSE rotation (Counter-Clockwise Opposite Shaft End). Its cast iron construction and Totally Enclosed Air Over (TEAO) design ensure maximum protection against moisture and airborne contaminants, making it a reliable standard for reach-in coolers and small evaporator applications. Featuring a 1/4" x 20 threaded shaft and impedance protection, the UB589 offers a direct-fit solution that maintains system efficiency while operating within a compact footprint.
Key Benefits for HVACR Contractors- Rugged Durability: The heavy-duty cast iron frame provides superior thermal stability and vibration dampening compared to stamped steel alternatives.
- Universal Mounting: Equipped with two mounting feet and three rear mounting holes, the UB589 simplifies field replacements across various equipment brands.
- Efficient Performance: Drawing only 0.29 amps, this 115V refrigeration fan motor optimizes energy consumption without sacrificing torque.
- Environmental Protection: The TEAO enclosure and Class B insulation (rated for 40°C ambient) safeguard internal windings from the harsh, high-humidity conditions of refrigeration cycles.
What is the best way to confirm the rotation of this motor?
The Fasco UB589 is rated for CCWOSE rotation. In the field, technicians should verify the rotation by looking at the motor from the opposite lead end. If your fan blade requires clockwise rotation, this unit will not be compatible without a pitch change.
Does this motor require a start or run capacitor?
No. As a shaded pole motor with impedance protection, the UB589 does not utilize a capacitor, reducing potential fail points in the circuit and simplifying the wiring process for the technician.
Can this motor be used in a walk-in freezer?
While the UB589 is highly resilient, it is rated for a 40°C ambient temperature. It is ideally suited for medium-temperature reach-in cases and evaporators; for extreme low-temp applications, always verify that the load does not exceed the 4W output capacity.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
