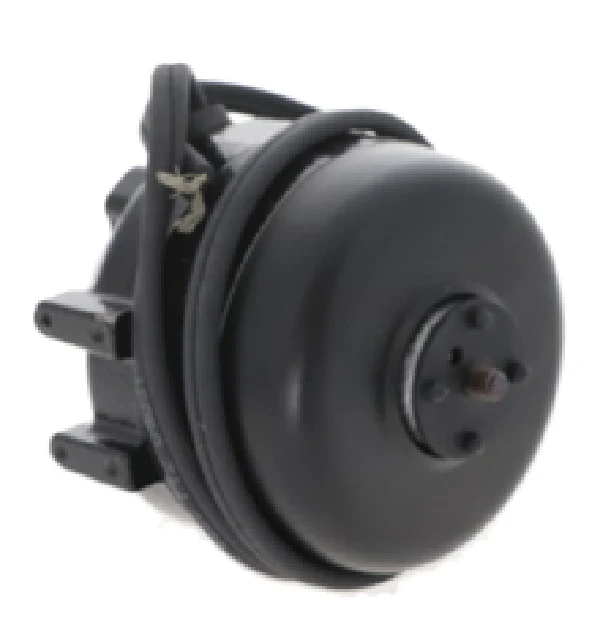

Fasco UB566 Motor
When you're dealing with standard commercial refrigeration or reach-in cooler maintenance, the Fasco UB566 motor is a staple 16-watt unit bearing motor designed for continuous duty. This 115V shaded pole motor operates at a fixed 1550 RPM and provides reliable clockwise rotation (CW) from the lead end. Built with a rugged cast iron housing and featuring totally enclosed air-over (TEAO) protection, it is engineered to withstand the moisture-heavy environments found in evaporative coolers and display cases. The threaded 1/4-20 shaft and multiple mounting options (including 2-boss and rear-tapped holes) ensure it serves as a direct HVAC motor replacement for several high-volume parts, effectively dropping into systems that originally used Dayton or Century alternatives. For the tech in the field, the thermal protection and Class B insulation provide the necessary durability to handle 40°C ambient temperatures without premature failure.
- Universal Compatibility: Replaces common units like the Dayton 3M636 and Century UB16CWLV1, making it a versatile unit bearing refrigeration motor for your truck stock.
- Industrial-Grade Construction: The cast iron frame and unit bearing design offer superior longevity compared to standard sleeve bearing alternatives in refrigeration cycles.
- All-Angle Mounting: Engineered for flexible installation, allowing for horizontal or shaft-up configurations in tight vent hoods and cabinets.
- Simplified Wiring: Features standard 28-inch leads for straightforward integration into existing 115V refrigeration circuits.
Common Questions
What are the primary cross-references for the UB566?
This motor is a professional-grade substitute for the Fasco D566, GE 5811, and various Copeland 050-0164-00 models, commonly used in grocery store display cases and walk-in coolers.
How do I confirm the rotation direction?
The Fasco UB566 is rated for CW rotation when viewed from the lead end (CWLE) or CCW rotation from the shaft end (CCWSE). Always verify your fan blade pitch to ensure proper airflow before securing the speed nut.
Is this motor suitable for outdoor condenser use?
While it is thermally protected and totally enclosed, it is primarily designed for refrigeration and evaporator applications. Ensure the 1550 RPM and 16-watt output match the specific airflow requirements of your equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
