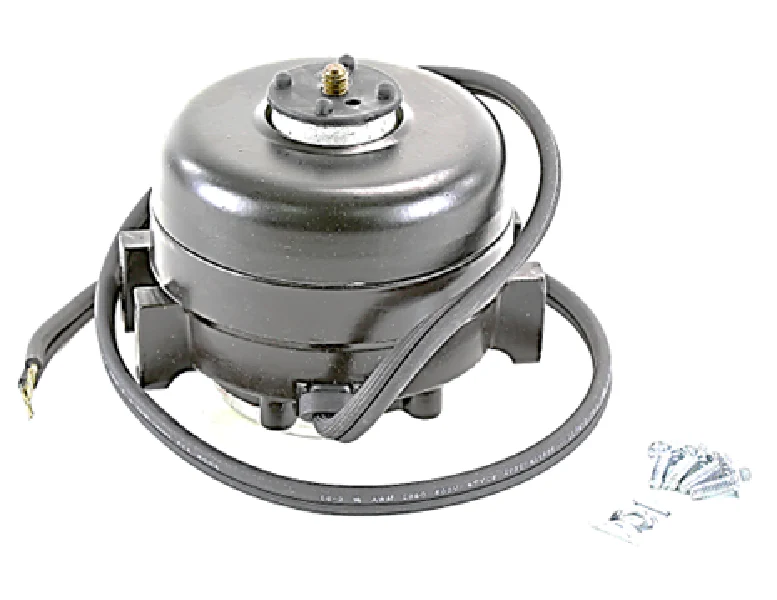

Fasco UB560 Motor
The Fasco UB560 motor is a high-performance unit bearing motor designed specifically for demanding commercial refrigeration and ventilation applications. Engineered with a 6-watt output and operating at a consistent 1550 RPM, this shaded pole motor provides reliable air movement in systems requiring 230V power. Its totally enclosed air over (TEAO) enclosure ensures the internal components remain protected from dust and moisture, while the impedance protection prevents overheating during locked-rotor conditions. The clockwise rotation (viewed from the lead end) and standard 1/4" x 20 threaded shaft make it an ideal drop-in replacement for hundreds of evaporator and condenser fan setups. Professionals rely on its unit bearing design for extended service life in refrigeration display cases and walk-in coolers. The aluminum construction optimizes heat dissipation, maintaining efficient operation in ambient temperatures up to 40°C.
Key Benefits- Universal Compatibility: Features 2-boss mounting and OSE 5-hole patterns for seamless integration into various HVACR bracket configurations.
- Maintenance-Free Operation: The unit bearing system is permanently lubricated, reducing service calls and ensuring quiet performance.
- Industrial Durability: Constructed with a rugged aluminum frame and Class B insulation to withstand the rigors of continuous duty cycles.
- Optimized Airflow: Specifically designed for evaporator fan blades ranging from 6 to 10 inches in diameter.
What is the primary application for the Fasco UB560?
This motor is a standard choice for commercial refrigeration equipment, including reach-in freezers, bottle coolers, and retail display cases. It is also frequently used in room heaters and exhaust ventilators.
Can I mount this motor in any orientation?
The UB560 is typically rated for horizontal or shaft-up mounting positions. Proper orientation ensures the unit bearing functions correctly and maintains optimal internal lubrication flow.
How do I confirm the rotation direction?
The UB560 is a CWLE (Clockwise Lead End) motor. Always verify the rotation of your existing fan blade to ensure the airflow matches the factory specifications of your refrigeration unit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
