Fasco K109 Motor

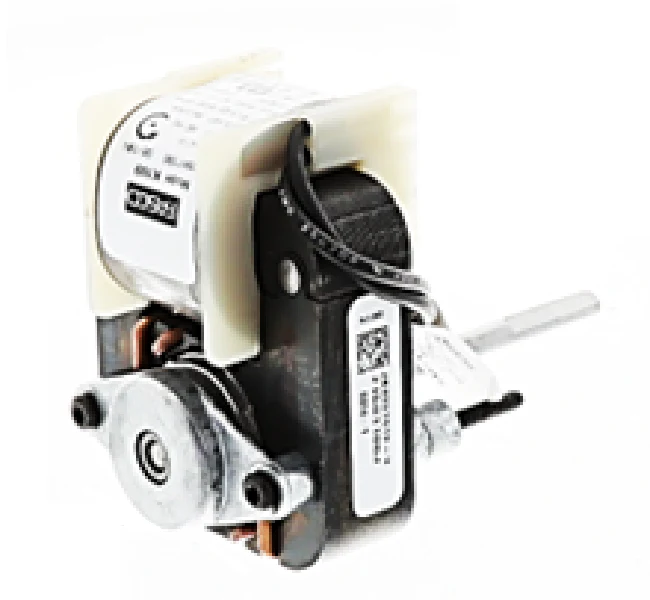

The Fasco K109 Motor is a high-performance shaded pole C-Frame motor engineered for demanding HVACR applications, including exhaust fans, range hoods, and humidifiers. This 1/75 HP unit operates at a rapid 3000 RPM on a standard 115V single-phase circuit. Designed as a reliable OEM replacement motor, the K109 features a robust sleeve bearing system and is thermally protected to ensure long-term stability under continuous duty cycles. With a compact C-frame design and a 0.2178-inch diameter shaft extending 2.37 inches, it integrates seamlessly into tight mechanical housings where space is a premium. The motor's counter-clockwise shaft end (CCWSE) rotation and extended stud mounting make it a versatile choice for contractors servicing brands like Nutone and Westward. Its Open Air Over (OAO) enclosure facilitates efficient heat dissipation, maintaining optimal performance even in restricted ventilation environments.
Key Benefits:
- Precision Compatibility: Serves as a direct drop-in for Fasco K109, Nutone C-68626, and Westward VFM 106 components.
- Durable Construction: High-quality sleeve bearings and Class B insulation support stable operation across varied ambient temperatures.
- Efficient Performance: Optimized for 0.77 FLA, delivering high-torque single-speed output for consistent airflow.
- Easy Installation: Features 6-inch leads with a molded plug and a 1-7/8 inch on-center stud pattern for rapid field replacement.
Common Questions:
What is the rotation direction of the Fasco K109?
The K109 is set for CCWSE rotation (counter-clockwise facing the shaft end). It is critical to verify your existing blower's rotation to ensure proper static pressure and airflow.
Can this motor replace other 1/75 HP C-frame motors?
Yes, provided the 3000 RPM speed, 115V rating, and physical shaft dimensions (.218" x 2.37") match your current specifications. It is a common vent fan motor replacement for many skeleton-style units.
Is the K109 compatible with speed controllers?
As a shaded pole motor, the K109 is generally intended for 1-speed operation. Using external controllers can impact the internal thermal protection and is not recommended for standard setups.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
