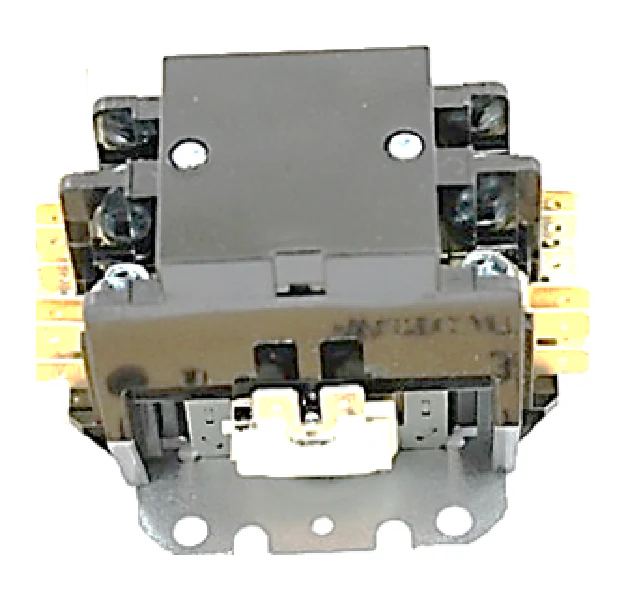

Fasco H230B Contactor
The Fasco H230B Contactor is a heavy-duty, definite purpose contactor designed for rigorous HVACR applications. Engineered as a 120V 30A 2-Pole Contactor, this component features a 120VAC coil and is rated for up to 600VAC. With a 30 Full Load Amperage (FLA) rating and a 40A resistive rating, it provides reliable switching for compressors and motors in residential and light commercial equipment. The 2-pole configuration ensures a clean break of both power legs, while the Locked Rotor Amps (LRA) rating of 150/125/100 (240/480/600V) confirms its ability to handle high-demand inductive start-ups. For ease of installation, the unit includes quick connect terminals and binding head screws, mounted on a standard universal base plate. This Fasco H230B serves as a high-performance replacement for various OEM 2-pole contactors, ensuring electrical stability and reducing contact pitting under heavy loads.
- Universal Compatibility: Direct drop-in for most 120V 30A DP contactor applications.
- High Inductive Rating: 30 Amp FLA / 150 LRA (at 240V) provides robust motor starting capacity.
- Superior Insulation: Features Class B coil insulation for enhanced thermal protection.
- Flexible Mounting: Includes a universal mounting plate to fit various screw patterns.
- Safe Operation: UL and CSA agency approvals for industrial and residential code compliance.
Common Questions
Can I use this to replace a single-pole contactor?
Yes, a 2-pole contactor like the Fasco H230B can replace a single-pole unit, providing the benefit of breaking both sides of the line for increased safety during maintenance. Ensure the 120V coil voltage matches your control circuit.
What does the 120V coil rating mean?
The 120V rating refers to the control voltage required to pull the contacts in. This is separate from the 30A load voltage (the power going to the compressor), which can be up to 600V.
Does this include terminal screws?
Yes, the Fasco H230B Contactor comes equipped with both binding head screws and 1/4" quick connect terminals for versatile wiring options.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
