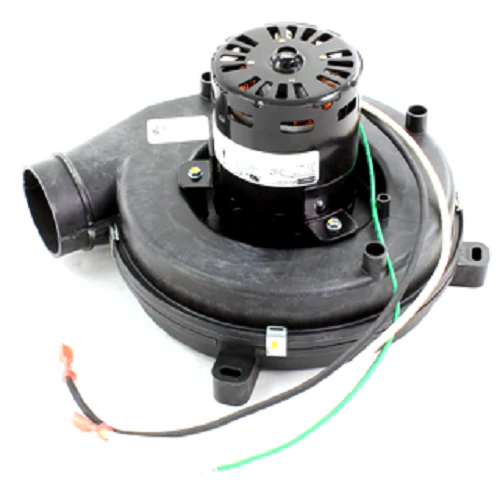

Fasco D9620 Inducer
The Fasco D9620 is a high-performance 115V draft inducer motor designed as the direct replacement for Fasco 9620 and various OEM furnace blower assemblies. Operating at 3200 RPM with a 1/20 HP rating, this shaded pole motor ensures reliable combustion air delivery in high-efficiency heating systems. It features a 3.3-inch diameter frame, sleeve bearings for quiet operation, and is thermally protected to prevent winding failure under high static pressure conditions. With a 0.70 Amp draw and clockwise lead end (CWLE) rotation, this unit facilitates precise venting of flue gases, maintaining optimal pressure switch closure. For contractors performing service calls, the D9620 inducer motor offers a drop-in fit for specific Coleman, Evcon, and Intertherm applications, ensuring the HVAC exhaust fan replacement meets factory specifications for air volume and static pressure requirements.
- Direct OEM Fit: Drop-in replacement for 7021-9620, 7021-9554, and 7021-10515 assemblies.
- Industrial Build Quality: Features a 3.3-inch frame and class B insulation for extended duty cycles.
- Optimized Performance: Fixed 3200 RPM speed provides consistent venting for 80+ and 90+ AFUE furnaces.
- Ease of Installation: Pre-stripped leads and standard mounting patterns reduce time on the job site.
Common Questions
What are the wiring specifications for the Fasco D9620?
The unit operates on a standard 115V single-phase circuit. It typically features two power leads for line voltage connection and a ground wire. Professional installation is recommended to verify correct amperage draw during the start-up cycle.
Will this motor resolve a pressure switch lockout?
If the existing motor fails to reach the rated 3200 RPM or the squirrel cage is fouled, the D9620 will restore the necessary static pressure to close the furnace pressure switch and initiate the ignition sequence.
Is this a clockwise or counter-clockwise rotation motor?
The Fasco D9620 is rated for CWLE (Clockwise Lead End) rotation. Always verify the rotation of the impeller on the existing shroud before finalizing the replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $369.94
-65%$369.94
$129.48Fasco D9620 Inducer
The Fasco D9620 is a high-performance 115V draft inducer motor designed as the direct replacement for Fasco 9620 and various OEM furnace blower assemblies. Operating at 3200 RPM with a 1/20 HP rating, this shaded pole motor ensures reliable combustion air delivery in high-efficiency heating systems. It features a 3.3-inch diameter frame, sleeve bearings for quiet operation, and is thermally protected to prevent winding failure under high static pressure conditions. With a 0.70 Amp draw and clockwise lead end (CWLE) rotation, this unit facilitates precise venting of flue gases, maintaining optimal pressure switch closure. For contractors performing service calls, the D9620 inducer motor offers a drop-in fit for specific Coleman, Evcon, and Intertherm applications, ensuring the HVAC exhaust fan replacement meets factory specifications for air volume and static pressure requirements.
- Direct OEM Fit: Drop-in replacement for 7021-9620, 7021-9554, and 7021-10515 assemblies.
- Industrial Build Quality: Features a 3.3-inch frame and class B insulation for extended duty cycles.
- Optimized Performance: Fixed 3200 RPM speed provides consistent venting for 80+ and 90+ AFUE furnaces.
- Ease of Installation: Pre-stripped leads and standard mounting patterns reduce time on the job site.
Common Questions
What are the wiring specifications for the Fasco D9620?
The unit operates on a standard 115V single-phase circuit. It typically features two power leads for line voltage connection and a ground wire. Professional installation is recommended to verify correct amperage draw during the start-up cycle.
Will this motor resolve a pressure switch lockout?
If the existing motor fails to reach the rated 3200 RPM or the squirrel cage is fouled, the D9620 will restore the necessary static pressure to close the furnace pressure switch and initiate the ignition sequence.
Is this a clockwise or counter-clockwise rotation motor?
The Fasco D9620 is rated for CWLE (Clockwise Lead End) rotation. Always verify the rotation of the impeller on the existing shroud before finalizing the replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
