Fasco D921 Motor

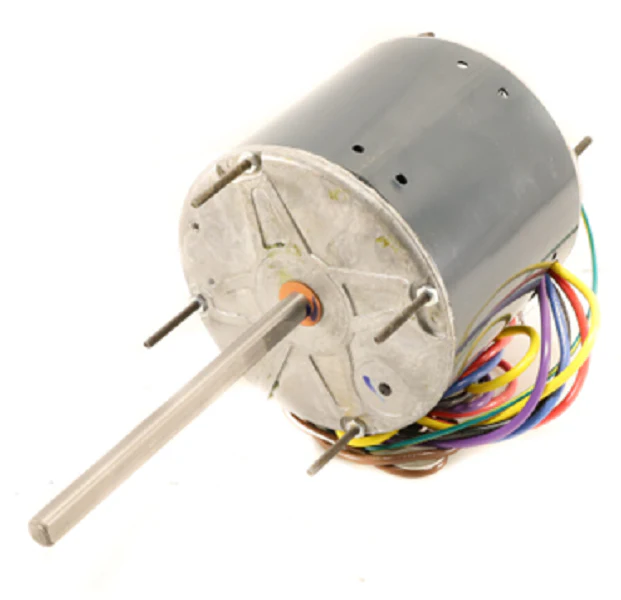

The Fasco D921 motor is a high-performance direct replacement condenser fan motor engineered for demanding commercial rooftop and residential outdoor units. Operating at 460V (or 230V) and 825 RPM, this 1/3 HP motor features a Permanent Split Capacitor (PSC) design that ensures peak electrical efficiency during continuous duty cycles. Built with a NEMA 48 frame and a 5.6-inch diameter, it utilizes all-angle ball bearings, allowing for versatile shaft-up, shaft-down, or horizontal mounting configurations. The motor is electrically reversible, featuring a 1/2" x 6-3/8" shaft with double flats for secure fan blade attachment. With an open air over (OAO) enclosure and Class B insulation rated for 60°C ambient temperatures, the Fasco D921 is designed to withstand the harsh thermal conditions of HVACR environments while protecting against internal overheating via automatic reset thermal overload protection.
- Universal Voltage Flexibility: Supports both 230V and 460V single-phase power supplies for broader field compatibility.
- Superior Bearing Life: Equipped with heavy-duty ball bearings to handle high thrust loads and provide long-term reliability in any orientation.
- Reversible Rotation: Simple lead switching allows for either CW or CCW rotation, reducing the need for multiple van stock items.
- Extended Shaft Design: The 6.42-inch shaft length with double flats provides maximum adjustment for various fan blade depths.
Common Questions
What size capacitor does the Fasco D921 require?
This motor requires a 5 MFD 370V run capacitor for proper startup and operation.
Can this motor be used in heat pump applications?
Yes, its all-angle mounting and thermal protection make it suitable for both straight-cool condensers and heat pump systems.
Is this a direct replacement for 1075 RPM motors?
No, this is an 8-pole motor designed specifically for 825 RPM applications. Always match the RPM and HP of the original motor to maintain system airflow and static pressure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $420.56
-65%$420.56
$147.20Fasco D921 Motor
The Fasco D921 motor is a high-performance direct replacement condenser fan motor engineered for demanding commercial rooftop and residential outdoor units. Operating at 460V (or 230V) and 825 RPM, this 1/3 HP motor features a Permanent Split Capacitor (PSC) design that ensures peak electrical efficiency during continuous duty cycles. Built with a NEMA 48 frame and a 5.6-inch diameter, it utilizes all-angle ball bearings, allowing for versatile shaft-up, shaft-down, or horizontal mounting configurations. The motor is electrically reversible, featuring a 1/2" x 6-3/8" shaft with double flats for secure fan blade attachment. With an open air over (OAO) enclosure and Class B insulation rated for 60°C ambient temperatures, the Fasco D921 is designed to withstand the harsh thermal conditions of HVACR environments while protecting against internal overheating via automatic reset thermal overload protection.
- Universal Voltage Flexibility: Supports both 230V and 460V single-phase power supplies for broader field compatibility.
- Superior Bearing Life: Equipped with heavy-duty ball bearings to handle high thrust loads and provide long-term reliability in any orientation.
- Reversible Rotation: Simple lead switching allows for either CW or CCW rotation, reducing the need for multiple van stock items.
- Extended Shaft Design: The 6.42-inch shaft length with double flats provides maximum adjustment for various fan blade depths.
Common Questions
What size capacitor does the Fasco D921 require?
This motor requires a 5 MFD 370V run capacitor for proper startup and operation.
Can this motor be used in heat pump applications?
Yes, its all-angle mounting and thermal protection make it suitable for both straight-cool condensers and heat pump systems.
Is this a direct replacement for 1075 RPM motors?
No, this is an 8-pole motor designed specifically for 825 RPM applications. Always match the RPM and HP of the original motor to maintain system airflow and static pressure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
