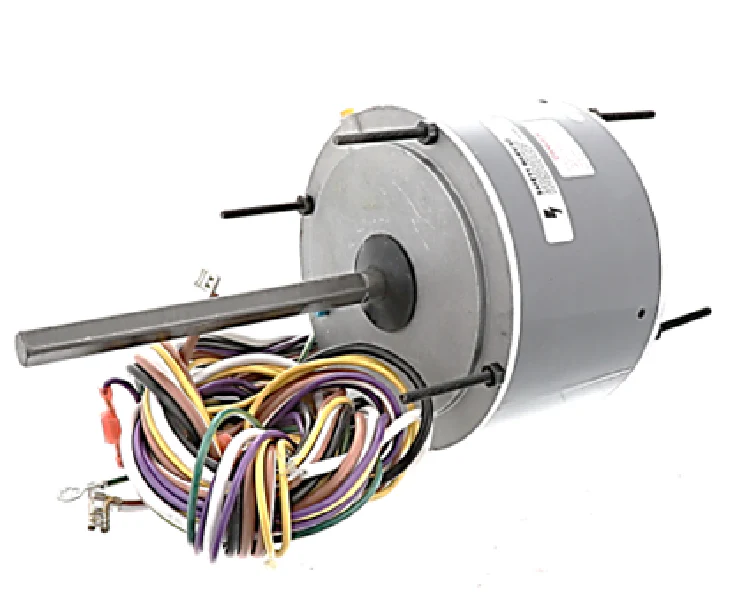

Fasco D919 Motor
The Fasco D919 is a professional-grade 1/8 HP condenser fan motor engineered for high-performance service in outdoor HVAC units. This 1075 RPM single-speed motor operates on 208-230V and is housed in a 48 frame with a 5.6-inch diameter. Designed as a Permanent Split Capacitor (PSC) motor, it requires a 5 MFD 370V capacitor (sold separately) for efficient operation. The totally enclosed air over (TEAO) enclosure protects internal components from environmental debris, making it a reliable solution for residential and commercial split-system air conditioners.
For flexible field installation, this motor features reversible rotation and extended studs on both ends, allowing for easy mounting via belly band or tie rods. The 1/2-inch x 6-inch shaft with double flats ensures secure fan blade attachment. With sleeve bearings and automatic thermal protection, the D919 is a direct replacement for various OEM units, including Century 182A. This HVAC replacement motor is built with Class B insulation and is UL recognized, ensuring it meets strict safety standards for continuous duty cycles in demanding outdoor conditions.
Key Benefits- Universal Versatility: Reversible rotation and extended tie rods provide compatibility with multiple mounting configurations.
- Durable Enclosure: The totally enclosed design prevents dust and rain from entering the motor windings, extending service life in outdoor environments.
- Optimized Performance: Operates at a low 0.9 Amps, maintaining high efficiency while delivering consistent 1075 RPM output.
- All-Angle Mounting: Engineered for horizontal or vertical shaft-down installations commonly found in condenser units.
What capacitor does the Fasco D919 require?
This motor requires a 5 MFD / 370 VAC capacitor. Using an incorrectly sized capacitor can lead to overheating or premature winding failure.
Can I use this motor to replace a different horsepower rating?
It is critical to match the horsepower (1/8 HP) and RPM (1075) of the existing motor. Using a motor with lower HP may cause it to burn out under the fan blade's load.
How do I change the rotation of the motor?
The Fasco D919 is electrically reversible. Simply swap the rotation leads according to the connection diagram on the motor nameplate during setup.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
