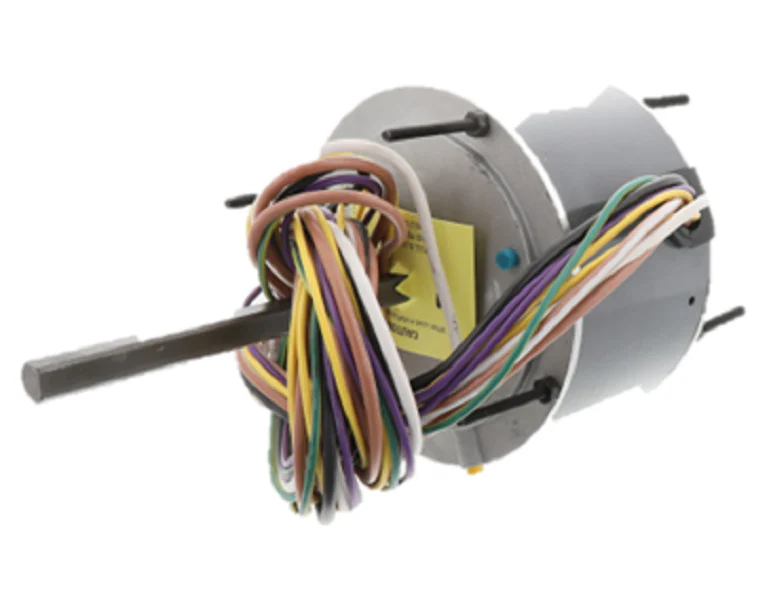

Fasco D917 Motor
The Fasco D917 Motor is a high-performance 1/6 HP condenser fan motor designed for demanding structural cooling applications. Operating at 1075 RPM on a 208-230V single-phase circuit, this 48-frame motor provides reliable heat dissipation for outdoor condensing units. As a PSC (Permanent Split Capacitor) motor, it requires a 5 MFD 370V capacitor for optimal torque and energy efficiency. The TEAO (Totally Enclosed Air Over) enclosure ensures the internal windings remain protected from environmental debris, while the sleeve bearings and 60°C ambient rating allow for continuous operation in high-heat outdoor environments. This reversible motor features a standard 1/2" x 6" shaft and multiple mounting options, including extended studs and belly band mounting, making it a versatile HVAC replacement motor for contractors servicing residential and light commercial AC systems.
Key Benefits
- Universal Versatility: Electrically reversible rotation (CW/CCW) and all-angle mounting capabilities simplify truck stock and job-site installations.
- Robust Protection: Features automatic thermal overload protection to prevent winding failure during voltage fluctuations or restricted airflow conditions.
- Drop-in Compatibility: The 5.6-inch diameter shell and extended tie rods provide a direct fit for a wide variety of OEM condensing units.
- Durability: Totally Enclosed Air Over (TEAO) construction prevents moisture and dust ingress, extending the service life of the condenser fan motor.
Common Questions
Is the capacitor included with the Fasco D917?
Most configurations of the Fasco D917 require a 5 MFD / 370 VAC capacitor that is typically sold separately. Always verify your existing capacitor’s microfarad rating before completing the installation.
Can this motor be mounted with the shaft facing up or down?
Yes, the Fasco D917 utilizes all-angle sleeve bearings, allowing for vertical shaft-up, vertical shaft-down, or horizontal mounting positions without compromising performance.
How do I change the rotation of the motor?
Rotation is electrically reversible. Simply swap the two reversing leads (usually identified by clear connectors) to match the fan blade's required direction (CW or CCW) at the lead end.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
