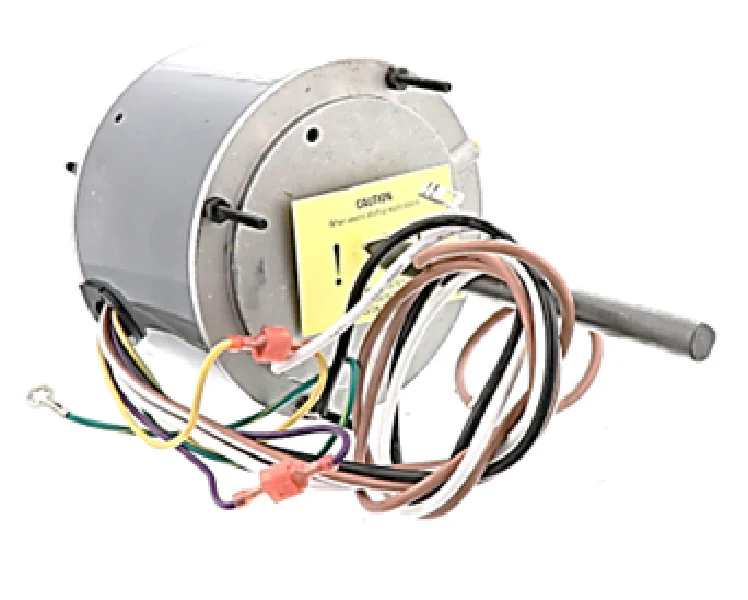

Fasco D909 Motor
The Fasco D909 is a professional-grade, 1/4 HP condenser fan motor engineered for high-demand HVACR applications. Operating at 208-230V and a nominal 1075 RPM, this 48-frame motor features a Totally Enclosed Air Over (TEAO) enclosure, making it an ideal choice for outdoor condensing units where protection from the elements is critical. Built with a Permanent Split Capacitor (PSC) design, it requires a 5 MFD/370V capacitor for optimal startup and running efficiency. This reversible HVAC motor offers CW or CCW rotation, providing the versatility needed for field replacements across various OEM brands. With sleeve bearings rated for all-angle mounting and automatic thermal protection, the Fasco D909 motor ensures reliable heat dissipation and long-term performance under continuous duty cycles. The 1/2" diameter shaft extends 6.5" and includes double flats for secure blower wheel or fan blade attachment, while the extended studs on both ends simplify installation in tight mechanical spaces.
- Universal Application: This reversible 1075 RPM motor supports multiple mounting configurations, including stud, belly band, and shell holes.
- Industrial Durability: The TEAO enclosure and Class B insulation protect internal windings from dust and moisture in outdoor environments.
- High Compatibility: Serves as a direct replacement condenser fan motor for a wide range of residential and light commercial AC units.
- Thermal Safety: Built-in automatic overload protection prevents motor burnout during high-ambient temperature conditions.
Common Questions
What capacitor is required for the Fasco D909?This motor requires a 5 MFD / 370 VAC run capacitor. Using an incorrectly rated capacitor can lead to overheating or failure to start.
Can this motor be mounted in any position?Yes, the Fasco D909 features all-angle sleeve bearings, allowing it to be mounted shaft-up, shaft-down, or horizontally depending on the equipment requirements.
How do I change the rotation of the motor?The rotation is easily reversible in the field by swapping the two leads according to the connection diagram on the motor's nameplate.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
