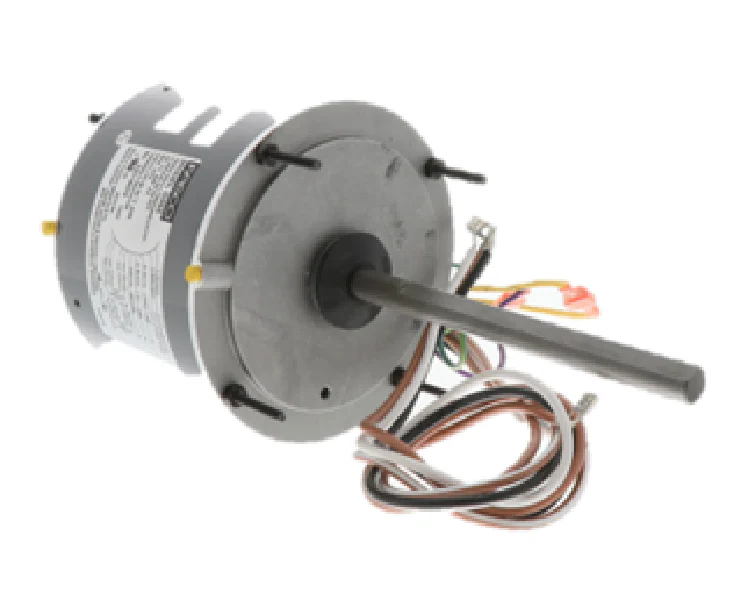

Fasco D908 Motor
The Fasco D908 Motor is a heavy-duty, 1/3 HP permanent split capacitor (PSC) motor engineered for demanding outdoor condenser fan motor applications. Designed with a 5.6-inch diameter (48 frame), this unit operates at 1075 RPM on a 208-230V single-phase circuit, drawing 2.4 amps at full load. For veteran contractors, the Fasco D908 offers a versatile all-angle mount capability with extended tie rods and a reversible rotation feature, making it a reliable OEM HVAC replacement motor for a wide variety of residential and commercial condensing units. This 1075 RPM condenser motor features a totally enclosed air over (TEAO) design and built-in automatic thermal protection to ensure stability in high-ambient environments up to 60°C. With a standard 1/2" x 6.5" shaft and sleeve bearings, it provides a direct-drive solution that maintains system pressure and efficient heat exchange. Ensure you have a 7.5 MFD / 370 VAC capacitor on hand as it is required for operation but not included with the assembly.
Key Benefits- Multi-Application Versatility: Reversible rotation and all-angle mounting allow this unit to replace numerous 1/3 HP condenser motors.
- Thermal Reliability: Equipped with automatic reset thermal overload protection and Class B insulation for consistent performance in outdoor heat.
- Durable Construction: The totally enclosed air over (TEAO) enclosure prevents moisture and debris from entering the motor windings.
- Standardized Fit: 48 frame size with 5.6-inch diameter ensures compatibility with standard HVAC motor mounting brackets and belly bands.
What capacitor is required for the Fasco D908?
This motor requires a 7.5 MFD / 370 VAC run capacitor for proper startup and torque.
Can I use this for a blower application?
No, the D908 is a TEAO motor specifically designed for outdoor condenser fan motor replacement where the fan blade pulls air over the motor for cooling.
How do I change the rotation of the motor?
Rotation is easily reversible by switching the lead connections as indicated on the motor's wiring diagram.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $154.00
-65%$154.00
$53.90Fasco D908 Motor
The Fasco D908 Motor is a heavy-duty, 1/3 HP permanent split capacitor (PSC) motor engineered for demanding outdoor condenser fan motor applications. Designed with a 5.6-inch diameter (48 frame), this unit operates at 1075 RPM on a 208-230V single-phase circuit, drawing 2.4 amps at full load. For veteran contractors, the Fasco D908 offers a versatile all-angle mount capability with extended tie rods and a reversible rotation feature, making it a reliable OEM HVAC replacement motor for a wide variety of residential and commercial condensing units. This 1075 RPM condenser motor features a totally enclosed air over (TEAO) design and built-in automatic thermal protection to ensure stability in high-ambient environments up to 60°C. With a standard 1/2" x 6.5" shaft and sleeve bearings, it provides a direct-drive solution that maintains system pressure and efficient heat exchange. Ensure you have a 7.5 MFD / 370 VAC capacitor on hand as it is required for operation but not included with the assembly.
Key Benefits- Multi-Application Versatility: Reversible rotation and all-angle mounting allow this unit to replace numerous 1/3 HP condenser motors.
- Thermal Reliability: Equipped with automatic reset thermal overload protection and Class B insulation for consistent performance in outdoor heat.
- Durable Construction: The totally enclosed air over (TEAO) enclosure prevents moisture and debris from entering the motor windings.
- Standardized Fit: 48 frame size with 5.6-inch diameter ensures compatibility with standard HVAC motor mounting brackets and belly bands.
What capacitor is required for the Fasco D908?
This motor requires a 7.5 MFD / 370 VAC run capacitor for proper startup and torque.
Can I use this for a blower application?
No, the D908 is a TEAO motor specifically designed for outdoor condenser fan motor replacement where the fan blade pulls air over the motor for cooling.
How do I change the rotation of the motor?
Rotation is easily reversible by switching the lead connections as indicated on the motor's wiring diagram.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
