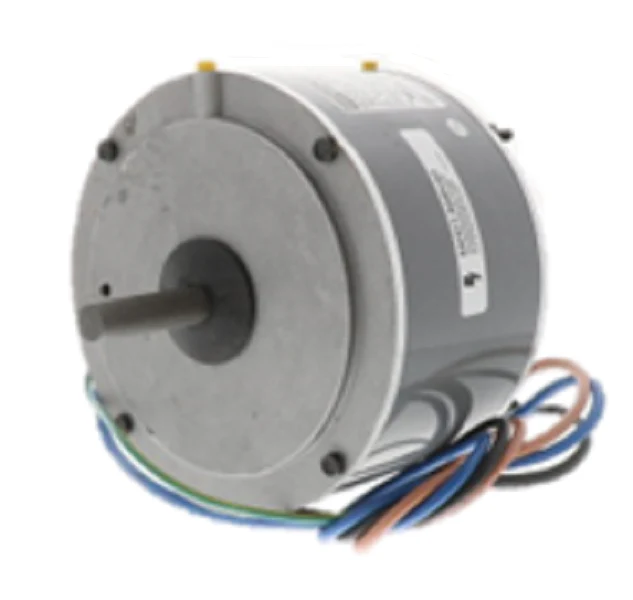

Fasco D895 Motor
The Fasco D895 is a professional-grade HVAC replacement motor designed for high-static air-moving applications. This 1/8 HP motor operates at 208-230V and delivers 1650 RPM, making it a reliable OEM direct replacement for residential and light commercial blowers. Built on a 48-frame (5.6" diameter) platform, it features a Totally Enclosed Air Over (TEAO) housing that prevents environmental contaminants from entering the motor windings, ensuring longevity in demanding environments. As a Permanent Split Capacitor (PSC) motor, it requires a 4 MFD / 370V capacitor for operation. It includes automatic thermal protection and Class B insulation rated for 60°C ambient temperatures. Installation is streamlined via extended studs on the lead end or a belly band mount. With a 1/2" diameter shaft and sleeve bearings, this unit is engineered for continuous duty and is UL recognized and CSA approved.
Key Benefits for Technicians
- Direct OEM Compatibility: Serves as a drop-in replacement for model 8856KTS-A13U, reducing field modifications.
- Enhanced Reliability: The thermal overload protection automatically resets, protecting the motor against overheating during peak usage.
- Flexible Mounting: Features multiple 20" leads with flag and quick connect terminals to accommodate various wiring harness configurations.
- Rugged Construction: The TEAO enclosure and sleeve bearing design are optimized for low-vibration, quiet operation in air-moving equipment.
Common Questions
What capacitor is required for the Fasco D895?
This motor requires a 4 MFD 370V capacitor (sold separately) for proper starting torque and efficiency.
Can this motor be mounted with a belly band?
Yes, while it includes extended studs for lead-end mounting, it is also compatible with standard 5.6" diameter belly band mounting brackets.
Is the rotation reversible?
This specific model is typically configured for one direction of rotation; please verify the lead-end or shaft-end rotation requirement of your fan blade or blower wheel before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
