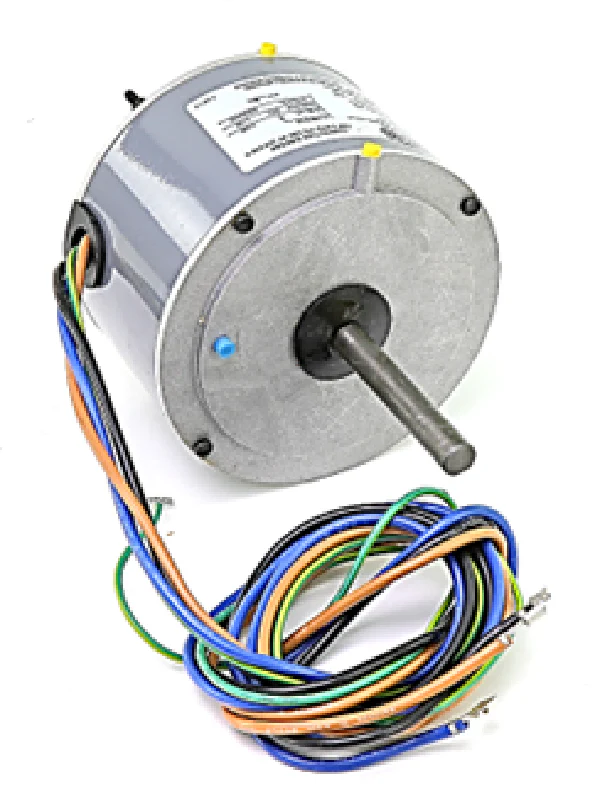

Fasco D847 Motor
The Fasco D847 motor is a high-performance 1/8 HP condenser fan motor engineered for heavy-duty HVACR applications. Operating at 208-230V and a nominal 1125 RPM, this 48 frame motor is a critical OEM replacement motor for Carrier, Bryant, and Payne units, specifically cross-referencing with part HC35VE230. Its totally enclosed air over (TEAO) design provides superior protection against environmental contaminants, ensuring long-term reliability in demanding rooftop or outdoor settings. Built with sleeve bearings and Class B insulation, it maintains stable operation in ambient temperatures up to 40°C. Technical features include a 1/2 inch diameter shaft with a flat, counterclockwise (CCW) rotation, and automatic thermal protection. This permanent split capacitor (PSC) motor requires a 5 MFD/370V capacitor for optimal startup and running torque. Professionals select the D847 for its extended stud mounting versatility and consistent 0.9 Amp draw under full load.
Key Benefits- Universal Compatibility: Serves as a direct Fasco D847 replacement for numerous condenser fan motors in 1-speed HVAC systems.
- Enhanced Durability: The TEAO enclosure and sleeve bearing system are designed for continuous duty in residential and commercial cooling environments.
- Reliable Performance: Integrated thermal overload protection prevents winding burnout during high-load conditions or voltage fluctuations.
- Contractor Grade: 54-inch power and capacitor leads simplify installation in large condenser cabinets.
What capacitor is required for the Fasco D847?
This motor requires a 5 MFD 370V run capacitor. Utilizing an incorrectly rated capacitor may lead to premature motor failure or reduced torque.
Can the rotation of this motor be reversed?
No, the D847 is a fixed CCW rotation (counterclockwise shaft end) motor. Always verify the rotation of the existing fan blade before ordering.
Is this a suitable replacement for Carrier HC35VE230?
Yes, the Fasco D847 motor is a direct technical match for the HC35VE230, sharing identical frame size, voltage, and RPM specifications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
