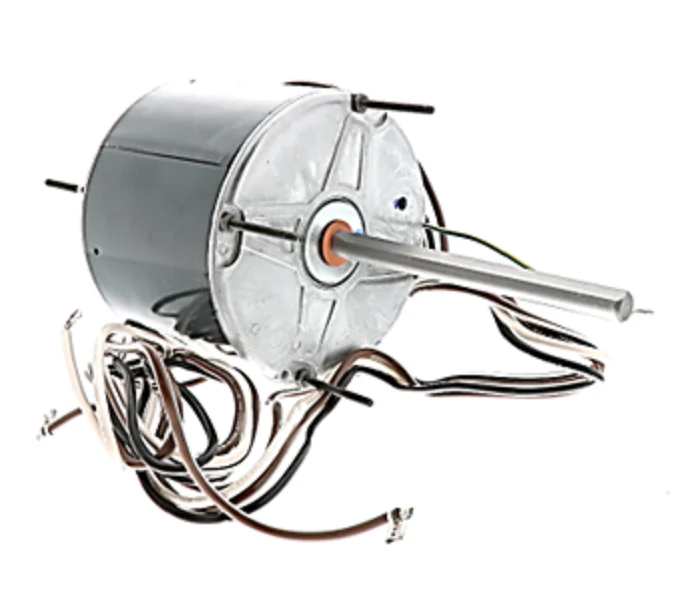

Fasco D798 Motor
The Fasco D798 Motor is a high-performance 1/6 HP condenser fan motor engineered for heavy-duty HVACR applications. Operating at 825 RPM, this 208-230V permanent split capacitor (PSC) motor is an ideal replacement for underperforming outdoor units requiring a 5.6-inch diameter (48Y frame) footprint. Built with a totally enclosed air over (TEAO) enclosure and sleeve bearings, it ensures reliable operation in demanding environments. The motor features electrically reversible rotation and is technically rated for 60°C ambient temperatures, making it a robust choice for technicians servicing residential and light commercial A/C systems.
Designed for versatile installation, the Fasco D798 includes a 1/2" x 6" shaft and four drilled/tapped holes in the shell. It effectively cross-references with common industry parts like the GE 3403, Century FE1018SF, and Packard 60825. When performing a swap, professionals should verify it is paired with a 5 MFD / 370V capacitor to maintain proper torque and efficiency. This HVAC replacement motor provides the high-torque, single-speed performance needed to restore optimal airflow through the condenser coil.
Key Benefits- Broad Compatibility: Direct drop-in replacement for GE, Century, and Emerson 825 RPM condenser motors.
- Thermal Protection: Features internal automatic overload protection to prevent winding failure during high-head pressure events.
- All-Angle Mounting: Equipped with all-angle sleeve bearings, allowing for shaft-up, shaft-down, or horizontal orientation.
- Weather Resistant: The TEAO enclosure protects internal components from rain and debris in outdoor installations.
- Field Flexibility: Reversible rotation allows you to match the original fan blade pitch without carrying multiple SKUs.
What capacitor does the Fasco D798 require?
This motor is designed to operate with a 5 MFD 370V run capacitor. Reusing an old capacitor is not recommended, as a weakened cap can lead to motor overheating or failure to start under load.
Can I use this motor to replace a 1075 RPM motor?
No. You must match the nameplate RPM. Installing an 825 RPM motor where a 1075 RPM motor is required will lead to insufficient airflow and potential compressor damage due to lack of cooling.
How do I reverse the rotation on this motor?
The D798 is electrically reversible. Simply swap the two sets of color-coded leads as indicated on the wiring diagram located on the motor shell to change from CCW to CW rotation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
