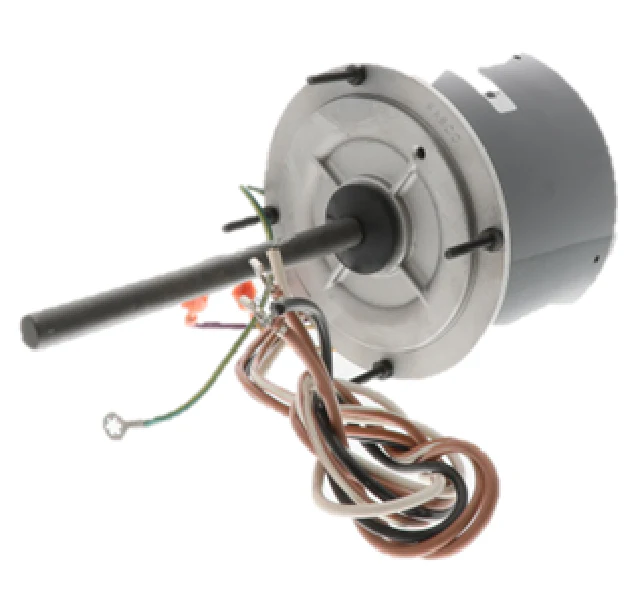

Fasco D7909 Motor
The Fasco D7909 motor is a professional-grade 1/4 HP condenser fan motor designed for direct-drive residential and light commercial outdoor units. Operating at 208-230V and a nominal 1075 RPM, this PSC (Permanent Split Capacitor) motor features a 48-frame (5-5/8 inch diameter) chassis with a Totally Enclosed Air Over (TEAO) enclosure to protect internal components from environmental debris. The 1/2-inch diameter by 6.5-inch long double flat shaft provides multiple mounting depths and secures fan blades firmly against high-torque start-ups. Designed with reversible rotation via a simple lead swap, it serves as a versatile HVAC replacement motor for various OEM configurations, including Rheem mounting styles. The unit is built with ball bearings for high-ambient capability up to 60°C and features automatic thermal overload protection to prevent winding failure during extreme duty cycles.
Key Benefits- High-Ambient Reliability: Rated for continuous duty in temperatures up to 60°C (140°F), ideal for demanding condenser fan motor applications.
- Universal Mounting: Includes extended studs on both ends and is compatible with belly band mounts for maximum field flexibility.
- Reversible Rotation: Easily switch between CW and CCW rotation to match the original equipment specifications.
- Durable Construction: Features a moisture-resistant TEAO enclosure and heavy-duty ball bearings for smooth, vertical, or horizontal operation.
- Installation Ready: Equipped with 27-inch leads and a standard 1/2-inch shaft for fast service calls.
What capacitor is required for the Fasco D7909?
This motor requires a 5 MFD / 370 VAC run capacitor (sold separately) for proper phase shift and optimal efficiency.
Is this motor compatible with 208V systems?
Yes, as a 208-230V motor, it is engineered to operate within the 10% voltage tolerance typically found in residential single-phase power supplies.
How do I change the rotation of the motor?
The D7909 is electrically reversible; simply swap the yellow and purple leads according to the connection diagram printed on the motor shell to achieve either CW or CCW rotation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
