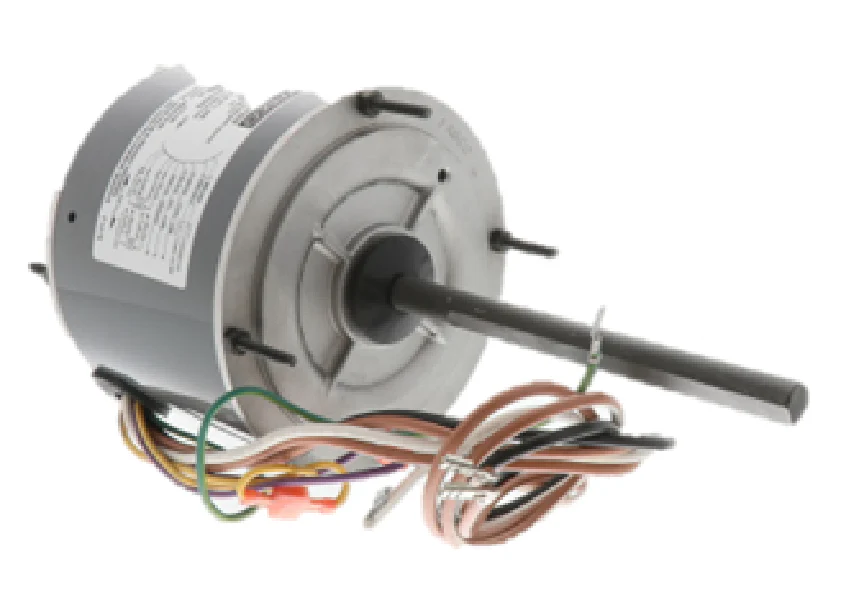

Fasco D7908 Motor
The Fasco D7908 Motor is a high-performance 1/3 HP Condenser Fan Motor designed for professional HVAC applications requiring a 1075 RPM operating speed. Built as a Permanent Split Capacitor (PSC) motor, this 48-frame unit operates on 208-230V single-phase power and draws a consistent 2.6 Amps at full load. Its Totally Enclosed Air Over (TEAO) enclosure ensures maximum protection against moisture and debris, while the 1/2" x 6-1/2" shaft features a double-flat design for secure fan blade attachment. With an all-angle mounting orientation and reversible rotation via simple lead swapping, the D7908 provides the flexibility needed for various residential and commercial outdoor units. This motor is thermally protected and rated for ambient temperatures up to 60°C, ensuring reliability during peak cooling demands. For proper installation, a 7.5 MFD 370V run capacitor is required to maintain efficient electrical phase shifting and torque performance.
Key Benefits:
- Reversible Rotation: Simplifies inventory by allowing CCW or CW rotation to be set in the field.
- Durability: Features ball bearings and a totally enclosed frame to withstand harsh outdoor environments.
- Versatile Mounting: Supports extended stud, belly band, or all-angle mounting for broad system compatibility.
- Thermal Protection: Automatic reset prevents overheating and extends the service life of the windings.
Common Questions:
What capacitor is needed for the Fasco D7908?
This motor requires a 7.5 MFD / 370V run capacitor. Always verify the capacitor's health when replacing the motor to prevent premature failure.
Can this replace a motor with a different frame size?
The D7908 is a 48-frame (5.6" diameter) motor. It is the standard for most HVAC condenser fan motor replacement tasks but check the bolt circle and shaft length for specific compatibility.
Is the rotation reversible on-site?
Yes, the Fasco D7908 features electrically reversible rotation, making it a versatile 208-230V fan motor for various airflow requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
