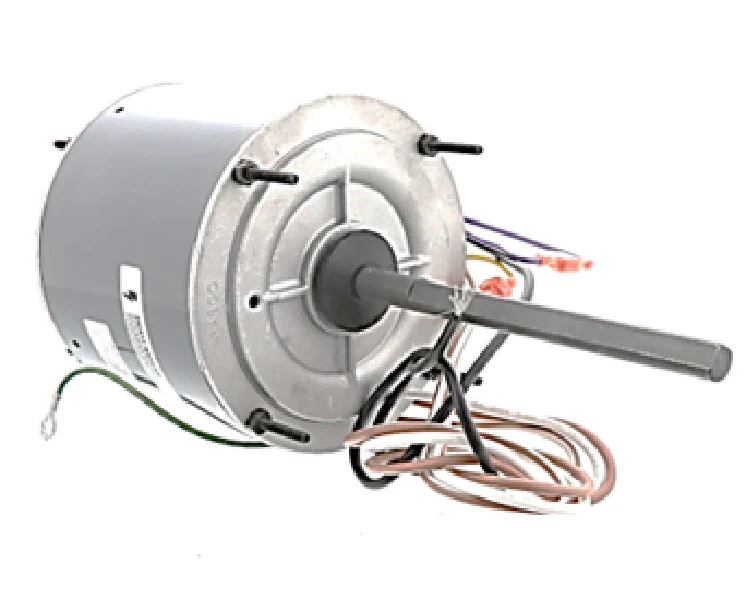

Fasco D7907 Motor
The Fasco D7907 is a reliable 5.6-inch diameter PSC condenser fan motor engineered for demanding HVACR applications. Operating at 1/2 HP with a 1075 RPM single-speed rating, this direct drive motor is a common high-performance replacement for many 208-230V outdoor units. Built with a totally enclosed air over (TEAO) enclosure, it protects internal components from environmental debris and moisture, ensuring long-term reliability in harsh condenser environments. The 3.7-amp draw and Permanent Split Capacitor design provide high starting torque and energy-efficient operation. Featuring a reversible rotation capability and a standard 1/2-inch shaft, the D7907 offers the versatility required for field service technicians handling various OEM equipment brands. This motor utilizes double-sealed ball bearings and an automatic thermal overload protector to maintain integrity during high ambient temperature operation, making it a critical component for restoring system head pressure and heat transfer efficiency.
- Reversible Rotation: Simplifies inventory by adapting to both CW and CCW lead-end requirements via a simple plug-in selector.
- TEAO Design: Totally enclosed housing prevents dust and contaminants from entering the windings, essential for condenser fan motor longevity.
- All-Angle Mounting: Equipped with double-sealed ball bearings, allowing for vertical shaft-up, shaft-down, or horizontal installation.
- Standard Frame Size: The 48-frame diameter ensures compatibility with standard mounting brackets or through-bolt configurations.
Common Technical Questions
What size capacitor does the Fasco D7907 require?
This motor is designed to operate with a 7.5 MFD / 370V run capacitor. Always match the capacitor rating precisely to prevent winding failure.
Can this motor replace a 1075 RPM motor with a lower amperage rating?
Yes, as long as the horsepower and voltage match, a motor with a higher amp rating like the D7907 (3.7 amps) can typically replace a lower-amp unit, as it indicates the motor's maximum load capacity.
Is the D7907 suitable for side-discharge or top-discharge units?
Because it features ball bearings and is totally enclosed, it is suitable for both configurations regardless of shaft orientation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
