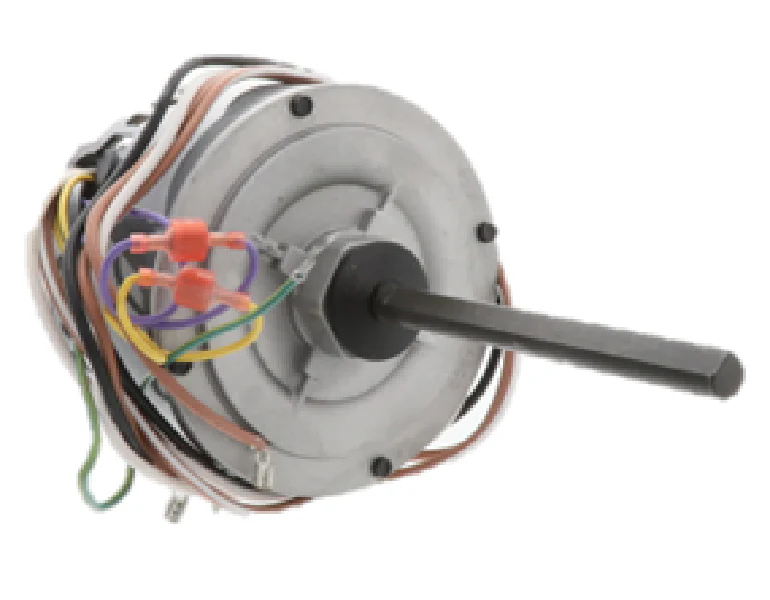

Fasco D7749 Motor
The Fasco D7749 is a heavy-duty, 1/4 HP condenser fan motor engineered for professional HVACR replacement applications. Operating at 208-230V and a nominal 1075 RPM, this 48-frame motor features a permanent split capacitor (PSC) design that maximizes efficiency in outdoor environments. It is built with ball bearings and an open drip-proof (ODP) enclosure, supporting all-angle mounting positions including shaft-up, shaft-down, or horizontal configurations. As a high-performance HVAC replacement motor, it includes automatic thermal overload protection to prevent winding failure during high-ambient operation (rated up to 60°C). The 1/2-inch diameter shaft is 6.5 inches long with a double-flat design, providing secure fitment for various fan blade hubs. With its reversible rotation capability and extended mounting studs, the D7749 serves as a versatile drop-in solution for major OEM brands, ensuring reliable airflow and system head pressure control in residential and commercial condensing units.
Key Benefits
- Universal Versatility: Features reversible rotation and a 5.6-inch diameter (48 frame) to match a wide array of OEM specifications.
- All-Angle Mounting: Equipped with dual ball bearings and extended studs, allowing for reliable operation in any orientation.
- Thermal Protection: Integrated automatic overload protection safeguards the motor against overheating in extreme summer conditions.
- Efficient Performance: The PSC motor design provides consistent torque and lower amperage draw (1.7 Amps) compared to standard shaded-pole alternatives.
Common Questions
What capacitor is required for the Fasco D7749?
This motor requires a 5 MFD / 370V run capacitor (not included). Using the correct capacitance is critical for maintaining proper torque and preventing premature winding failure.
Can this motor be used in a shaft-down configuration?
Yes. The ball bearing system and ODP enclosure are designed for all-angle mounting, making it suitable for shaft-up, shaft-down, or horizontal installations in the airstream.
Does it replace the Fasco D749?
Yes, the D7749 is a direct technical replacement for the Fasco D749, offering the same 1/4 HP, 1075 RPM, and 48-frame physical dimensions.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
