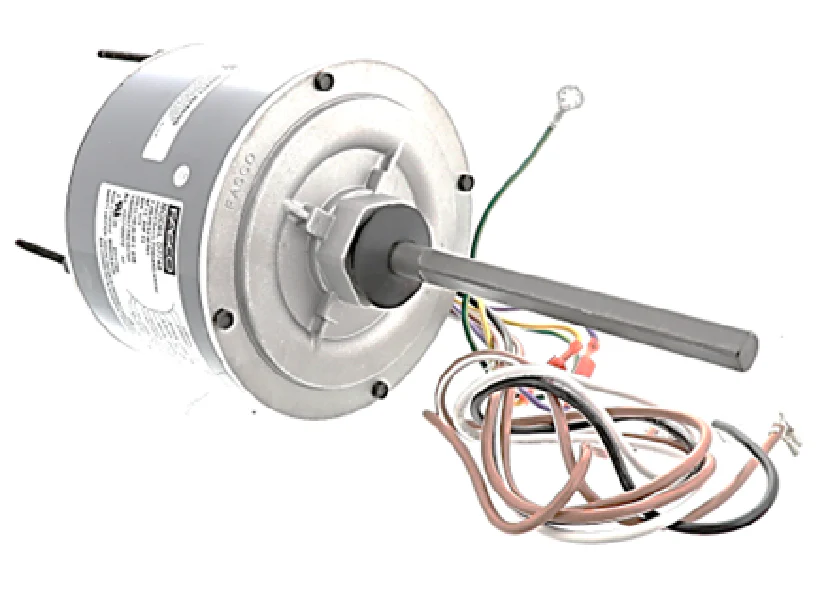

Fasco D7748 Motor
The Fasco D7748 Motor is a high-performance 1/3 HP condenser fan motor engineered for demanding HVACR applications demanding reliability and precise airflow. Operating at 208-230V and a nominal 1075 RPM, this PSC motor (Permanent Split Capacitor) is a staple for service technicians requiring a versatile 48 frame replacement motor. Its 5.6-inch diameter and reversible rotation capability make it compatible with a wide array of residential and light commercial outdoor units. Built with ball bearings and a thermally protected design, it is rated for 60°C ambient temperatures, ensuring continuous duty performance in high-heat environments.
This motor features extended studs for easy mounting and a 1/2" x 6-1/2" shaft with a double flat for secure fan blade attachment. Whether you are performing a condenser fan motor replacement or upgrading an existing system, the Fasco D7748 provides the high-torque start and energy-efficient operation required to maintain system head pressures. Note that this motor requires a 5 MFD 370V capacitor for proper operation. With its open air-over (OAO) enclosure, it is specifically designed to be positioned within the airstream for optimal cooling of the motor windings during operation.
Key Benefits- Universal Application: Features reversible rotation and a standard 48 frame diameter to replace a broad range of OEM fan motors.
- Heavy-Duty Construction: Equipped with ball bearings for all-angle mounting (shaft up, down, or horizontal) and long-term durability.
- High Temperature Resilience: Rated for 60°C ambient temperatures, preventing premature failure during peak summer load.
- Flexible Installation: Includes extended studs and is compatible with belly band or base mounting configurations.
- Reliable Protection: Integrated automatic thermal overload protection prevents winding damage during voltage surges or restricted airflow.
What capacitor does the Fasco D7748 require?
This motor requires a 5 MFD / 370 VAC run capacitor to achieve proper torque and efficiency; using an incorrect rating can lead to overheating.
Can this motor be mounted shaft-down?
Yes, the ball bearing design and semi-enclosed shell allow for shaft-up, shaft-down, or horizontal mounting positions in the condenser unit.
Is the rotation field-reversible?
Yes, the Fasco D7748 features a simple lead-switch design to change rotation between CW and CCW to match the pitch of your existing fan blade.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
