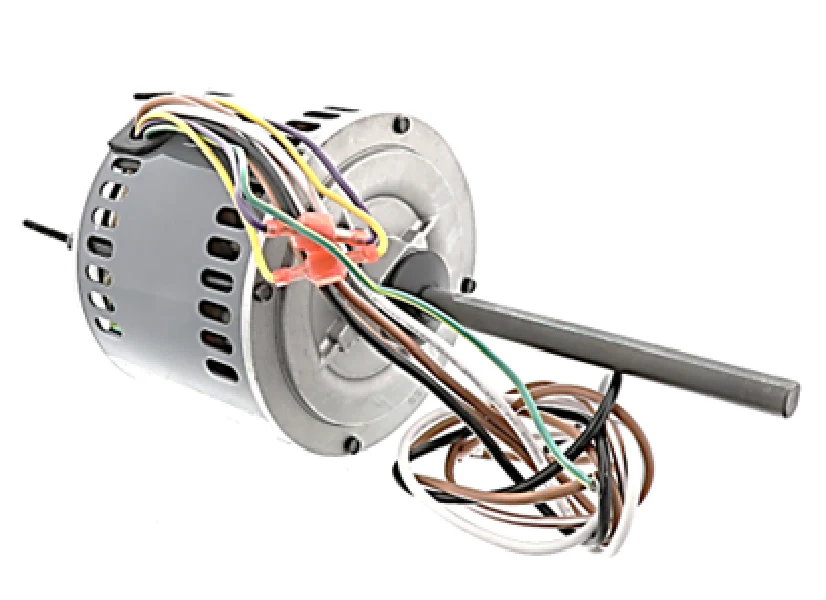

Fasco D7745 Motor
The Fasco D7745 motor is a high-performance 1/2 HP condenser fan motor designed for demanding HVACR applications. Operating at 208-230V and a nominal 1075 RPM, this permanent split capacitor (PSC) motor features a 5.6-inch diameter (48 frame) and a 1/2" x 6.5" shaft with double-flat flats for secure fan blade mounting. Built with ball bearings and an open-air over (OAO) enclosure, the D7745 is engineered for vertical or horizontal shaft-up/shaft-down configurations within the airstream. As a reversible 1075 RPM motor, it provides technicians with the flexibility to match rotation requirements on-site using standard leads. This motor is a reliable HVAC replacement motor for residential and light commercial outdoor condensing units, ensuring optimal heat transfer and system head pressure control.
Key Benefits- Versatile Application: Reversible rotation and multi-mount capability (belly band or stud mount) make it an ideal service stock item for various condenser brands.
- Enhanced Durability: Equipped with ball bearings for extended service life in high-ambient temperature environments up to 60°C.
- Thermally Protected: Features internal automatic thermal overload protection to prevent winding failure during restricted airflow conditions.
- Standard 48 Frame: Fits 5.6-inch diameter mounting brackets common in most modern air conditioning units.
What capacitor is required for the Fasco D7745?
This motor requires a 10 MFD / 370V run capacitor (sold separately) for proper torque and amperage draw.
Is this 1075 RPM motor suitable for side-discharge units?
Yes, the Fasco D7745 is designed for both vertical and horizontal mounting, provided the motor remains in the component's airstream for cooling.
Can the Fasco D7745 replace a 1/3 HP motor?
Yes, a 1/2 HP motor can typically replace a 1/3 HP motor if the frame size, voltage, and RPM match, as it provides sufficient torque without overloading the circuit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Fasco D7745 Motor
The Fasco D7745 motor is a high-performance 1/2 HP condenser fan motor designed for demanding HVACR applications. Operating at 208-230V and a nominal 1075 RPM, this permanent split capacitor (PSC) motor features a 5.6-inch diameter (48 frame) and a 1/2" x 6.5" shaft with double-flat flats for secure fan blade mounting. Built with ball bearings and an open-air over (OAO) enclosure, the D7745 is engineered for vertical or horizontal shaft-up/shaft-down configurations within the airstream. As a reversible 1075 RPM motor, it provides technicians with the flexibility to match rotation requirements on-site using standard leads. This motor is a reliable HVAC replacement motor for residential and light commercial outdoor condensing units, ensuring optimal heat transfer and system head pressure control.
Key Benefits- Versatile Application: Reversible rotation and multi-mount capability (belly band or stud mount) make it an ideal service stock item for various condenser brands.
- Enhanced Durability: Equipped with ball bearings for extended service life in high-ambient temperature environments up to 60°C.
- Thermally Protected: Features internal automatic thermal overload protection to prevent winding failure during restricted airflow conditions.
- Standard 48 Frame: Fits 5.6-inch diameter mounting brackets common in most modern air conditioning units.
What capacitor is required for the Fasco D7745?
This motor requires a 10 MFD / 370V run capacitor (sold separately) for proper torque and amperage draw.
Is this 1075 RPM motor suitable for side-discharge units?
Yes, the Fasco D7745 is designed for both vertical and horizontal mounting, provided the motor remains in the component's airstream for cooling.
Can the Fasco D7745 replace a 1/3 HP motor?
Yes, a 1/2 HP motor can typically replace a 1/3 HP motor if the frame size, voltage, and RPM match, as it provides sufficient torque without overloading the circuit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
