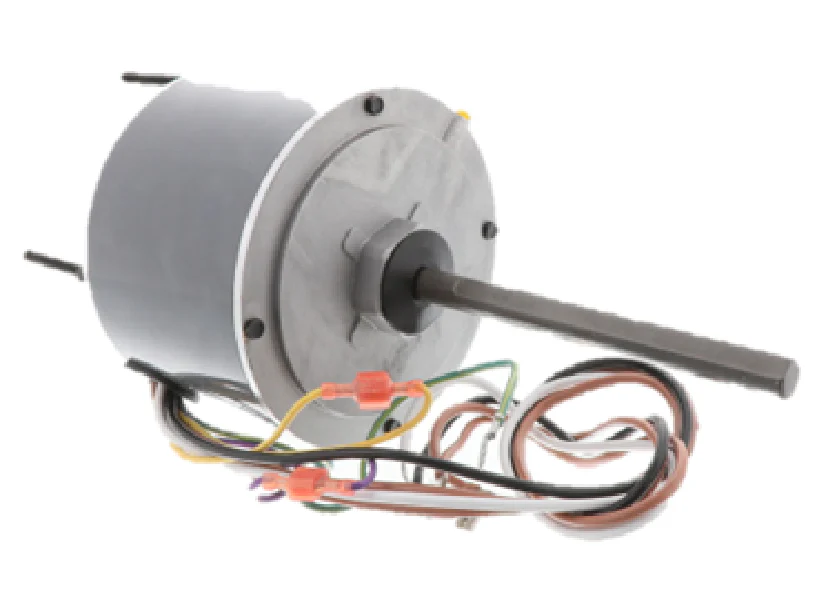

Fasco D748 Motor
Professional-grade Fasco D748 Condenser Fan Motor is a high-performance 1/3 HP HVAC replacement motor engineered for demanding outdoor environments. Operating at 208-230V and a nominal 1075 RPM, this 48-frame motor features a permanent split capacitor (PSC) design that ensures high electrical efficiency and reliable startup. Designed with a 5.6-inch diameter and all-angle mounting capability, it provides a versatile solution for contractors servicing residential and light commercial A/C units and heat pumps. The motor includes a 1/2-inch x 6-1/2-inch double flat shaft and 27-inch leads, facilitating straightforward installation in diverse cabinet configurations.
The Fasco D748 is built for longevity with a semi-enclosed air over (SAO) housing and automatic thermal overload protection to prevent winding failure during high-ambient operation. Its reversible rotation allows for matching specific OEM airflow requirements with a simple lead change. This unit is a direct cross-reference for 5KCP39HGP698S and other common 48-frame condenser motors, making it a staple for the service truck. Efficient 2.9 Amp draw under load maximizes system performance while maintaining thermal stability.
Key Benefits- Reversible rotation allows the technician to configure clockwise or counter-clockwise airflow in the field.
- Permanent Split Capacitor (PSC) design delivers improved energy efficiency compared to shaded pole alternatives.
- Automatic thermal overload protection prevents motor burnout by interrupting power during excessive heat conditions.
- Versatile 48-frame geometry with extended studs and belly band compatibility ensures fitment in most condenser units.
- Class B insulation rated for high-ambient temperatures typical of summer rooftop and grade-level installations.
What capacitor is required for the Fasco D748?
This motor requires a 5 MFD / 370V run capacitor (sold separately) to achieve proper torque and speed ratings.
Can this motor be mounted horizontally or vertically?
Yes, the all-angle mounting design and sleeve bearings allow for shaft-up, shaft-down, or horizontal orientation.
Is this a suitable replacement for a 1/4 HP or 1/2 HP motor?
It is widely used to replace 1/3 HP motors. Upgrading a 1/4 HP motor is possible if dimensions fit, but it should not be used to replace a 1/2 HP motor as it will lack the necessary torque.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
