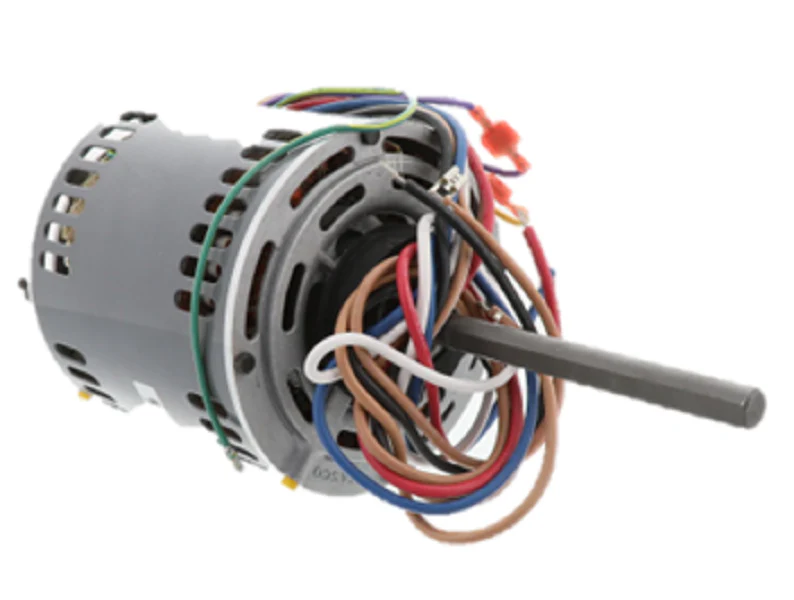

Fasco D728 Motor
Ensure your heating and cooling equipment maintains peak airflow with the Fasco D728 Motor, a versatile direct drive blower motor engineered for professional-grade reliability. This 5.6-inch diameter PSC motor features a multi-horsepower design, allowing technicians to utilize it as a 3/4 HP, 1/2 HP, or 1/3 HP blower motor replacement across various 115V residential and light commercial air handlers. Operating at a nominal 1075 RPM with three distinct speeds, it provides the precise static pressure control required for modern furnace and AC applications. The 48-frame housing is open air over (OAO) rated for continuous duty in the airstream, while the 1/2" x 6" shaft and reversible rotation make it a flexible solution for truck-stocking, effectively replacing hundreds of OEM models.
Key Benefits- Multi-HP Versatility: Direct replacement for 3/4, 1/2, and 1/3 HP requirements, reducing the need for multiple SKUs.
- Reversible Rotation: Simple lead reversal allows for clockwise or counter-clockwise operation to match existing blower wheels.
- Extended Shaft: Features a 6-inch long, 1/2-inch diameter shaft with double flats for secure mounting of fan blades and blowers.
- Thermal Protection: Includes automatic reset thermal overload protection to prevent winding failure during high-static conditions.
- Flexible Mounting: Compatible with resilient ring mounting, belly bands, or extended stud mounts for universal installation.
What capacitor is required for this motor?
The Fasco D728 requires a 10 MFD / 370 VAC run capacitor (sold separately) for proper startup and efficient operation.
Is this motor suitable for outdoor condenser units?
No, this is an Open Air Over (OAO) motor designed for indoor blower duty within furnace cabinets or air handlers where it is protected from direct weather exposure.
Can I use this to replace a 230V motor?
No, this model is rated specifically for 115V, 60Hz single-phase power. Verify your system voltage before installation to avoid electrical damage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
