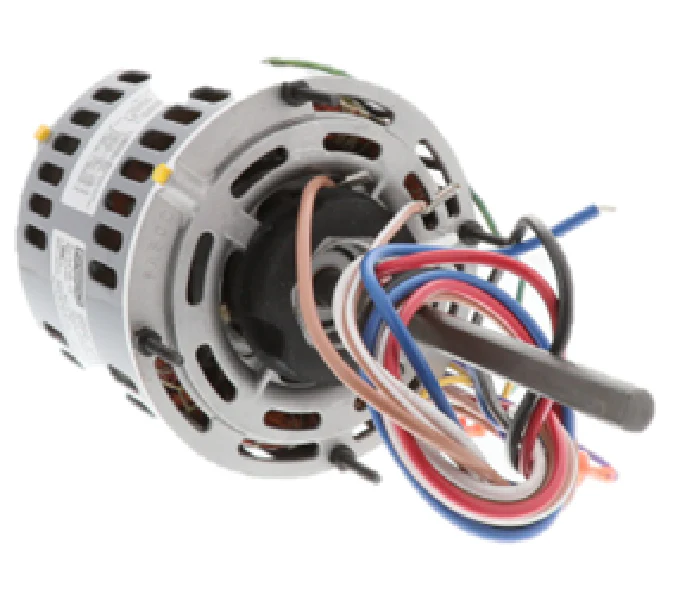

Fasco D727 Motor
The Fasco D727 is a versatile, Permanent Split Capacitor (PSC) multi-horsepower replacement motor designed for high-static blower applications. This 5.6-inch diameter powerhouse operates at 115V and features a triple-tap design, allowing it to function at 1/3 HP, 1/4 HP, or 1/5 HP ratings. With a high-speed rating of 1075 RPM and a reversible rotation feature, the D727 is a standard solution for direct drive blower motor replacements in residential and light commercial HVAC units. It utilizes a 4-pole design with Sleeve Bearings for quiet operation and is Thermally Protected to prevent winding failure under heavy load. The motor requires a 5 MFD / 370V capacitor (sold separately) and features a standard 1/2-inch shaft diameter by 4-inch length with a flat surface for secure blower wheel attachment. Its Open Air Over (OAO) enclosure ensures maximum heat dissipation during continuous duty cycles.
Key Benefits
- Multi-HP Versatility: Replaces 1/3, 1/4, and 1/5 HP motors, reducing the need for multiple truck stock units.
- Reversible Rotation: Easily switch between CW and CCW rotation to match various HVAC blower assembly requirements.
- Quiet Operation: Precision-engineered sleeve bearings minimize vibration and noise in residential ductwork.
- Universal Mounting: Compatible with Fasco motor mounting kits and standard flex mounts for fast installation.
Common Questions
What capacitor does the Fasco D727 require?
This motor requires a 5 MFD 370V run capacitor. Always replace the capacitor when installing a new motor to ensure proper torque and amperage draw.
How do I change the rotation on this motor?
The D727 features a simple reversing plug or wire leads. Swap the connections according to the wiring diagram on the motor nameplate for clockwise or counter-clockwise rotation.
Can this motor be used in a furnace or air handler?
Yes, it is specifically designed for direct drive furnace blowers and air handlers where the motor is located in the airflow (Open Air Over design).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $151.86
-65%$151.86
$53.15Fasco D727 Motor
The Fasco D727 is a versatile, Permanent Split Capacitor (PSC) multi-horsepower replacement motor designed for high-static blower applications. This 5.6-inch diameter powerhouse operates at 115V and features a triple-tap design, allowing it to function at 1/3 HP, 1/4 HP, or 1/5 HP ratings. With a high-speed rating of 1075 RPM and a reversible rotation feature, the D727 is a standard solution for direct drive blower motor replacements in residential and light commercial HVAC units. It utilizes a 4-pole design with Sleeve Bearings for quiet operation and is Thermally Protected to prevent winding failure under heavy load. The motor requires a 5 MFD / 370V capacitor (sold separately) and features a standard 1/2-inch shaft diameter by 4-inch length with a flat surface for secure blower wheel attachment. Its Open Air Over (OAO) enclosure ensures maximum heat dissipation during continuous duty cycles.
Key Benefits
- Multi-HP Versatility: Replaces 1/3, 1/4, and 1/5 HP motors, reducing the need for multiple truck stock units.
- Reversible Rotation: Easily switch between CW and CCW rotation to match various HVAC blower assembly requirements.
- Quiet Operation: Precision-engineered sleeve bearings minimize vibration and noise in residential ductwork.
- Universal Mounting: Compatible with Fasco motor mounting kits and standard flex mounts for fast installation.
Common Questions
What capacitor does the Fasco D727 require?
This motor requires a 5 MFD 370V run capacitor. Always replace the capacitor when installing a new motor to ensure proper torque and amperage draw.
How do I change the rotation on this motor?
The D727 features a simple reversing plug or wire leads. Swap the connections according to the wiring diagram on the motor nameplate for clockwise or counter-clockwise rotation.
Can this motor be used in a furnace or air handler?
Yes, it is specifically designed for direct drive furnace blowers and air handlers where the motor is located in the airflow (Open Air Over design).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
