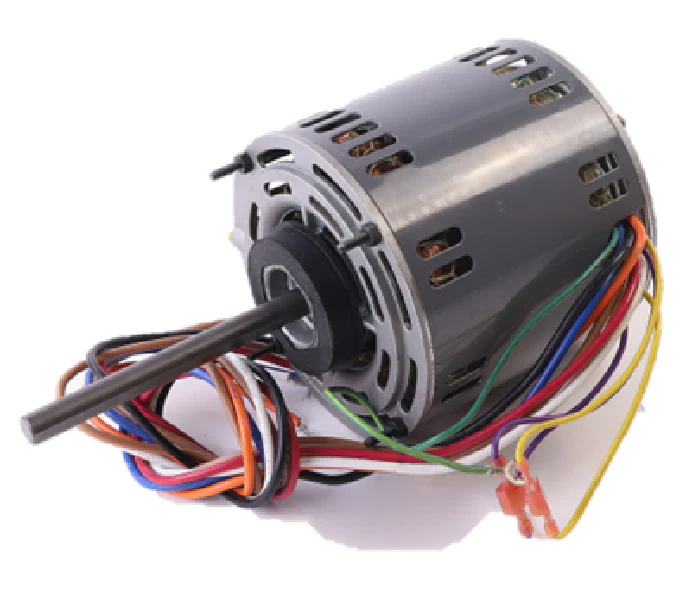

Fasco D701 Motor
The Fasco D701 is a high-performance 1/2 HP direct drive blower motor designed for heavy-duty HVACR applications. Operating at 115V and 1075 RPM, this 4-speed furnace motor provides the torque and versatility needed for multi-speed air handlers and residential furnaces. As a 48-frame motor with a 5.6-inch diameter, it serves as a reliable PSC replacement motor for a wide range of OEM brands, including Carrier, Trane, and Rheem. The reversible rotation capability and all-angle sleeve bearings allow for flexible installation in various cabinet configurations, ensuring optimal airflow performance and system efficiency.
For technicians in the field, the Fasco D701 replacement features extended mounting studs and is compatible with standard belly band or resilient ring mounts. The open air over (OAO) enclosure facilitates effective heat dissipation during continuous operation. Note that this motor requires a 10 MFD 370V capacitor (not included) to achieve rated PSC motor efficiency. With a 1/2-inch x 5-1/2-inch shaft and 26-inch leads, this motor is a staple for service vans, capable of covering 1/2, 1/3, 1/4, and 1/5 HP requirements depending on the speed tap utilized.
Key Benefits:- Multi-HP Versatility: Four distinct speed taps allow this 1/2 HP blower motor to replace lower horsepower units, reducing truck stock requirements.
- Ease of Integration: The reversible rotation ensures compatibility with both clockwise and counter-clockwise blower wheels.
- Durable Construction: Built with Class B insulation and thermal protection to withstand high-ambient environments within the furnace cabinet.
- Broad Compatibility: Cross-references with major industry part numbers, including Carrier P257-8587 and Rheem 51-23012-31.
- Can this motor replace an ECM motor? No, the D701 is a Permanent Split Capacitor (PSC) motor and cannot directly replace an electronically commutated motor without significant control board modifications.
- What capacitor should I use? This unit requires a 10 MFD 370V run capacitor. Utilizing an incorrectly sized capacitor can cause overheating and premature motor failure.
- How do I change the rotation? Rotation is easily reversed by swapping the specialized connector leads according to the diagram on the motor housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
